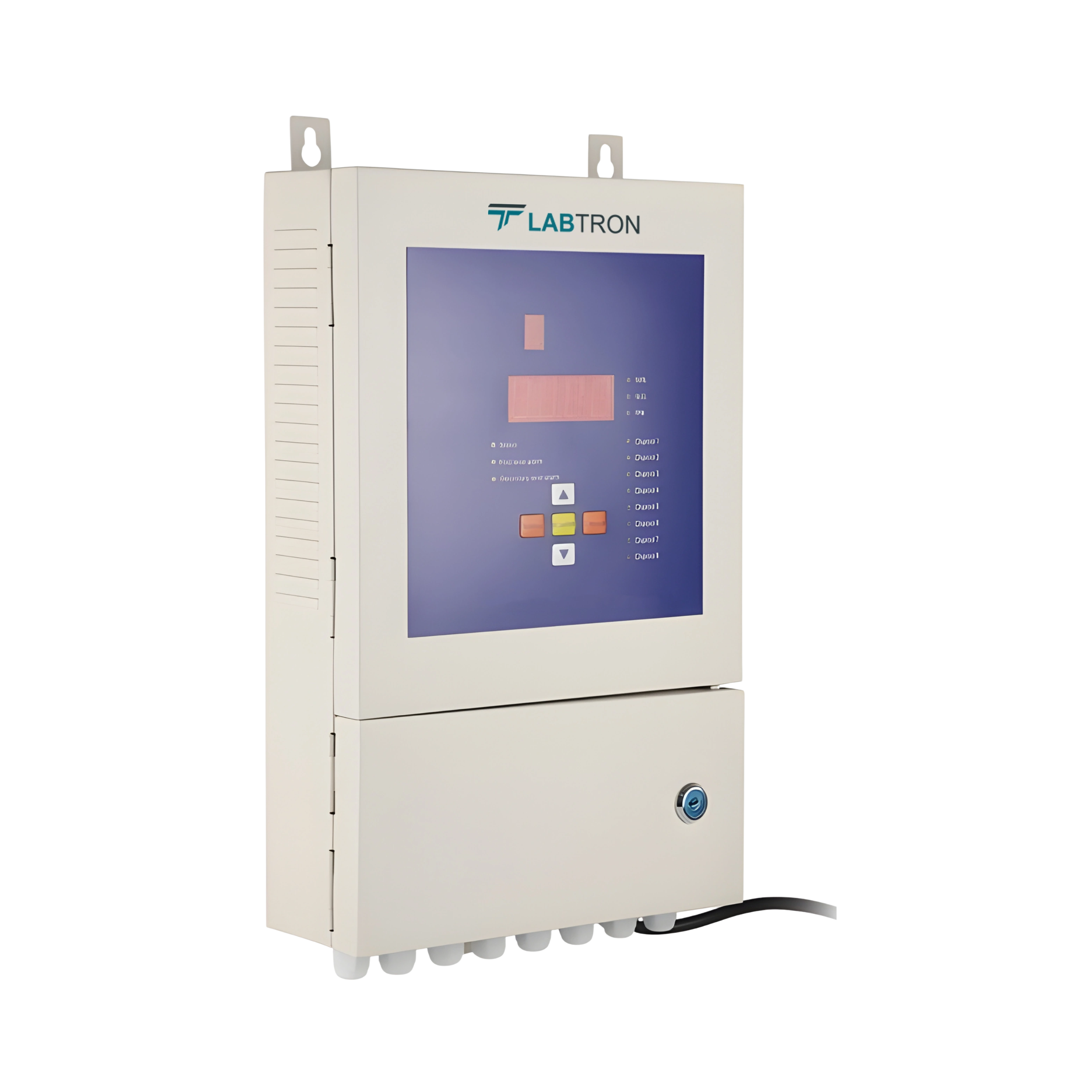

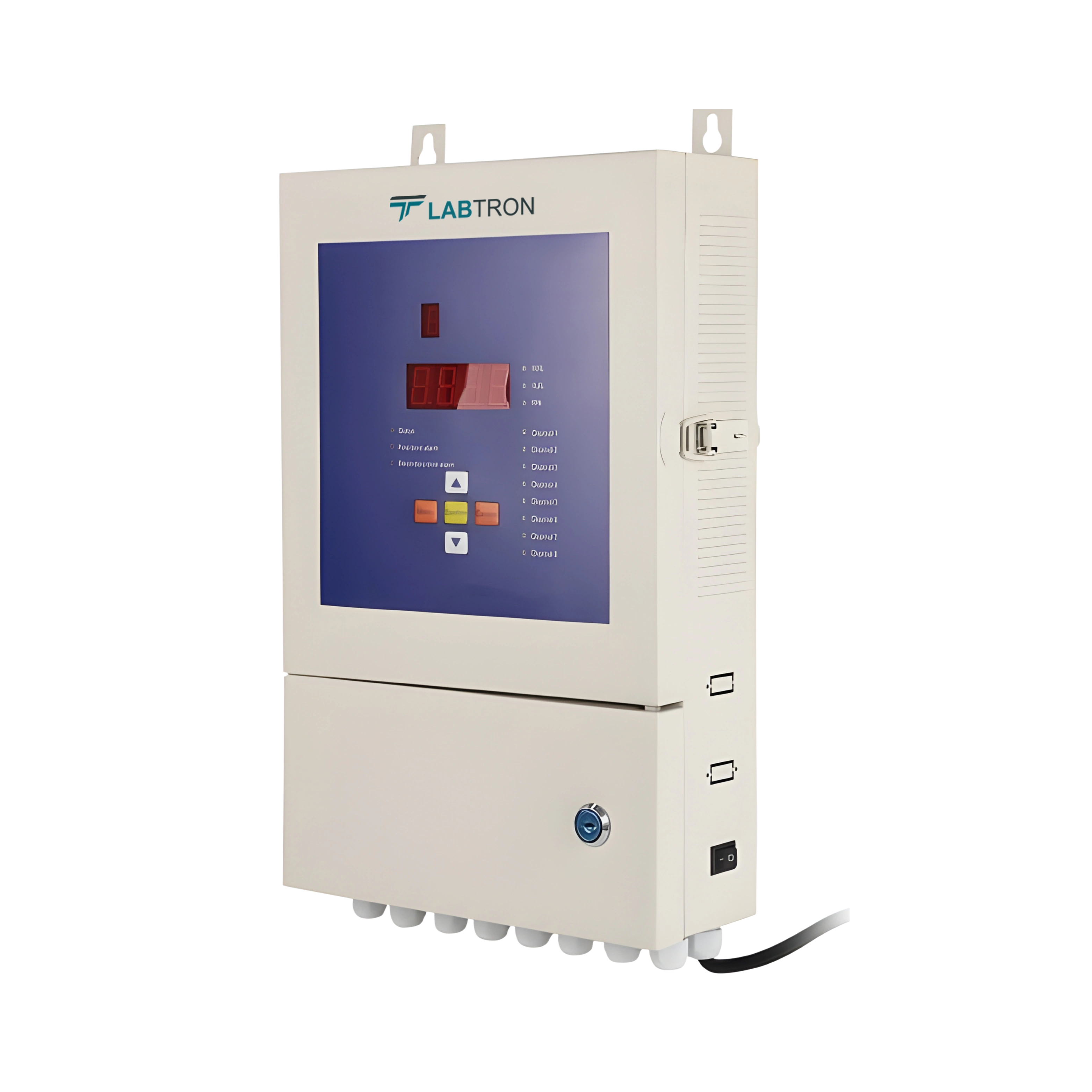

Wall Mounted Gas Detectors LAGD-A10 includes one control panel with H₂ detector, HCN detector, NH₃ detector, and O₂ detector. It supports 1 to 4 channels of 4 to 20mA signal acquisition. This control panel can be connected to any gas detector and delivers relevant results. It facilitates gas-type switching between oxygen and non-oxygen. Allows customization of high and low alarm values, as well as range settings. Our panel can also control various devices such as solenoid valves, exhaust fans, motors, and water pumps.
Request Quote| Input Channel | 4 to 20mA, 1channel, 2 channel and 4 channel |
| Communication Mode | 3 wires 4 to 20mA, RS485 |
| Relays | 1 set standard, 2 to 5 (optional) |
| Maximum Support Load | AC250V 10A |
| Channel Display | 1 digit |
| Concentration Display | 4 digits, 0.001 to 9999 |
| Unit Display | μmol/mol, PPM, %VOL, %LEL |
| Alarm Mode | sound, light, concentration display |
| Inspection Interval | 200ms |
| Working Temperature | -10℃ to 50℃ |
| Working Humidity | ≤ 95%RH |
| Power Output | DC 24V, 0.25A/channel |
| Power Supply | AC 100 to 220V 50/60Hz |
| Dimensions | 73.7 × 192.5 × 83.7 mm |
| Weight | ≤ 1.7kg |

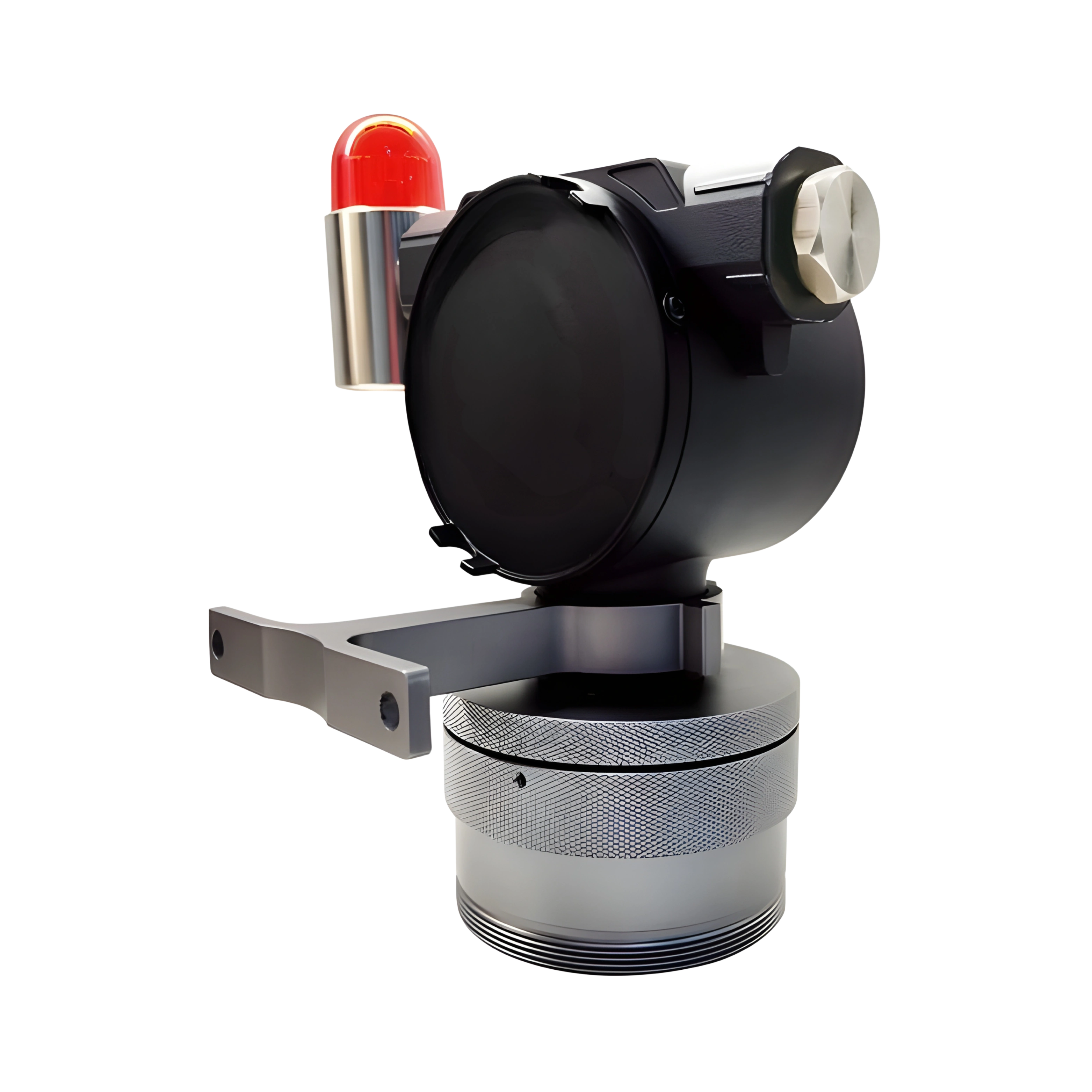

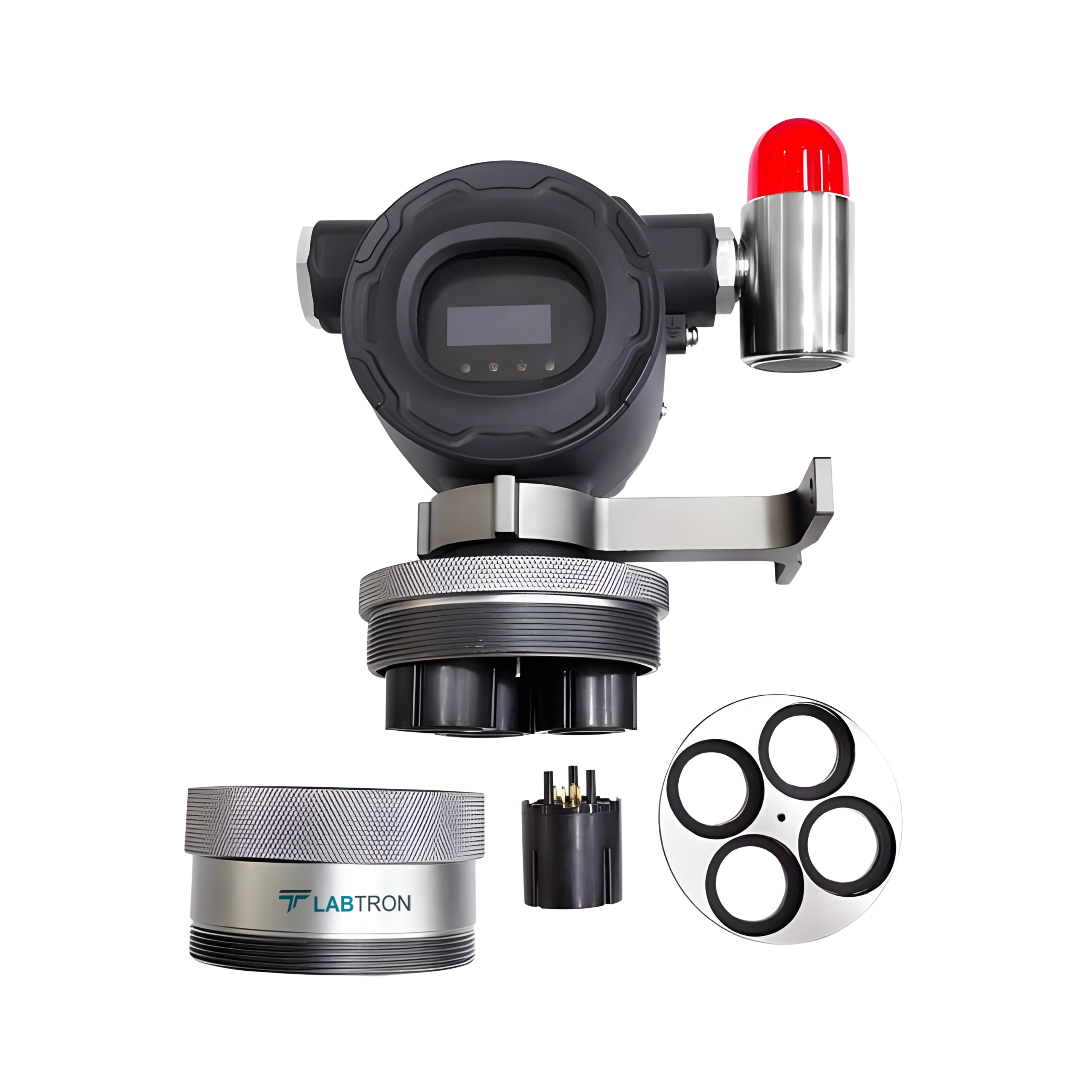

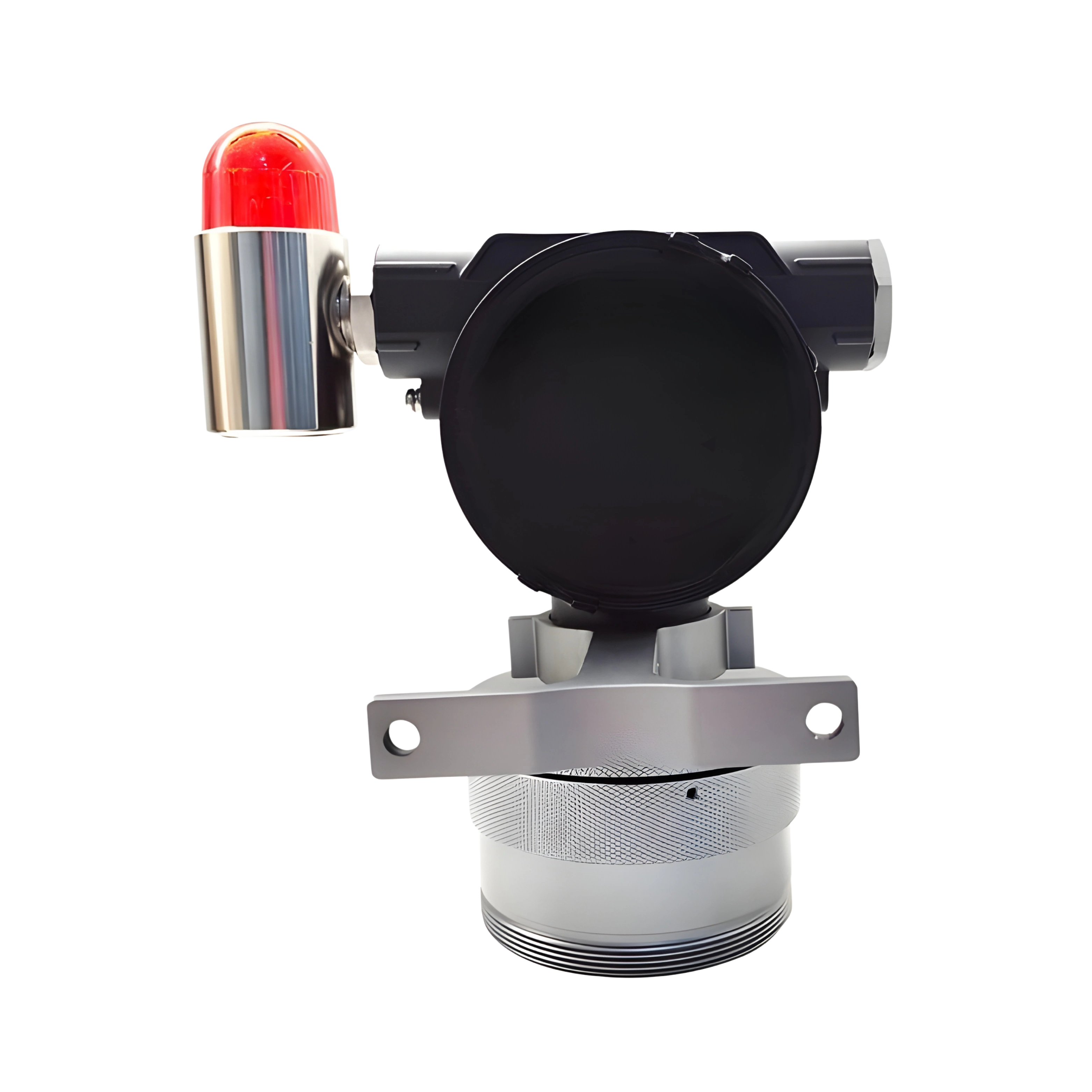

Wall Mounted Gas Detectors are used for continuous monitoring of toxic gases, oxygen, and flammable gases. They can be employed in industrial settings such as chemical plants, refineries, and manufacturing facilities.
| Detectors Available | H₂ detector, HCN detector, NH₃ detector, O₂ detector |
| Gas Detected | H₂, HCN, NH₃ ammonia, O₂ oxygen |
| Detection Principle | H₂: Catalytic, HCN: Electrochemistry, NH₃: Electrochemistry, O₂: Electrochemistry |
| Measure Range | H₂: 0 to 100%LEL, HCN: 0 to 100ppm, NH₃: 0-100ppm, O₂: 0-30%VOL |
| Resolution | H₂:1%LEL, HCN: 0.1ppm, NH₃: 0.1ppm, O₂: 0.01%VOL |
| Accuracy | ≤±2 to 5% FS |
| Explosion-Proof Grade | IECEX： Ex db IIC T6 Gb， Ex db ia IIC T6 Gb, ATEX：Ex db IIC T6 Gb，Ex db ia IIC T6 Gb |
| Protection Grade | IP66/67 |
| Power Consumption | toxic gas <2.5W，flammable gas <4W |
| Communication Mode | 4 to 20mA (3-wires), RS485 1 to 5V, or Hart |
| Wireless Port | LORA or GPRS/4G |
| Working Voltage | 12-24VDC |
| Display | LED display |
| Contact Capacity | standard with 1 set of relay signals, optional with 2 sets of relay signals |
| Working Temperature | -40℃ to 70℃ (Catalytic sensor), -20℃ to 50℃ (Electrochemistry sensor) |
| Working Pressure | 86kPa to 106kPa |
| Housing Material | Die casting aluminum |
| Electrical Interface | Standard internal screw thread M20 × 1.5, |
| Or 1/2NPT internal thread, G3/4, G1/2, 3/4NPT | |
| Each Detector Dimensions | 157.8 × 128.8 × 69.6mm |
| Each Detectors Weight | about 1.0Kg |
