| Orbital Diameter | 4 mm |
| Max. Load Capacity (with platform) | 2.5 kg |
| Motion Type | Linear |
| Motor Type | Brushless DC motor |
| Speed Range | 100 to 350 rpm |
| Speed Display | LCD |
| Timer Display | LCD |
| Time Settings Range | 1 min to 99 h 59 min |
| Protection Class | IP21 |
| Data Connector | RS232 |
| Permissible Ambient Temp and Humidity | 5 to 40 °C, 80% RH |
| Voltage, Frequency | 100 to 240 V, 50/60 Hz |
| Power | 30 W |
| Motor Input Power | 28 W |
| Motor Output Power | 15 W |
| Dimension (W×D×H) | 300 × 340 × 100 mm |
| Weight | 8.1 kg |

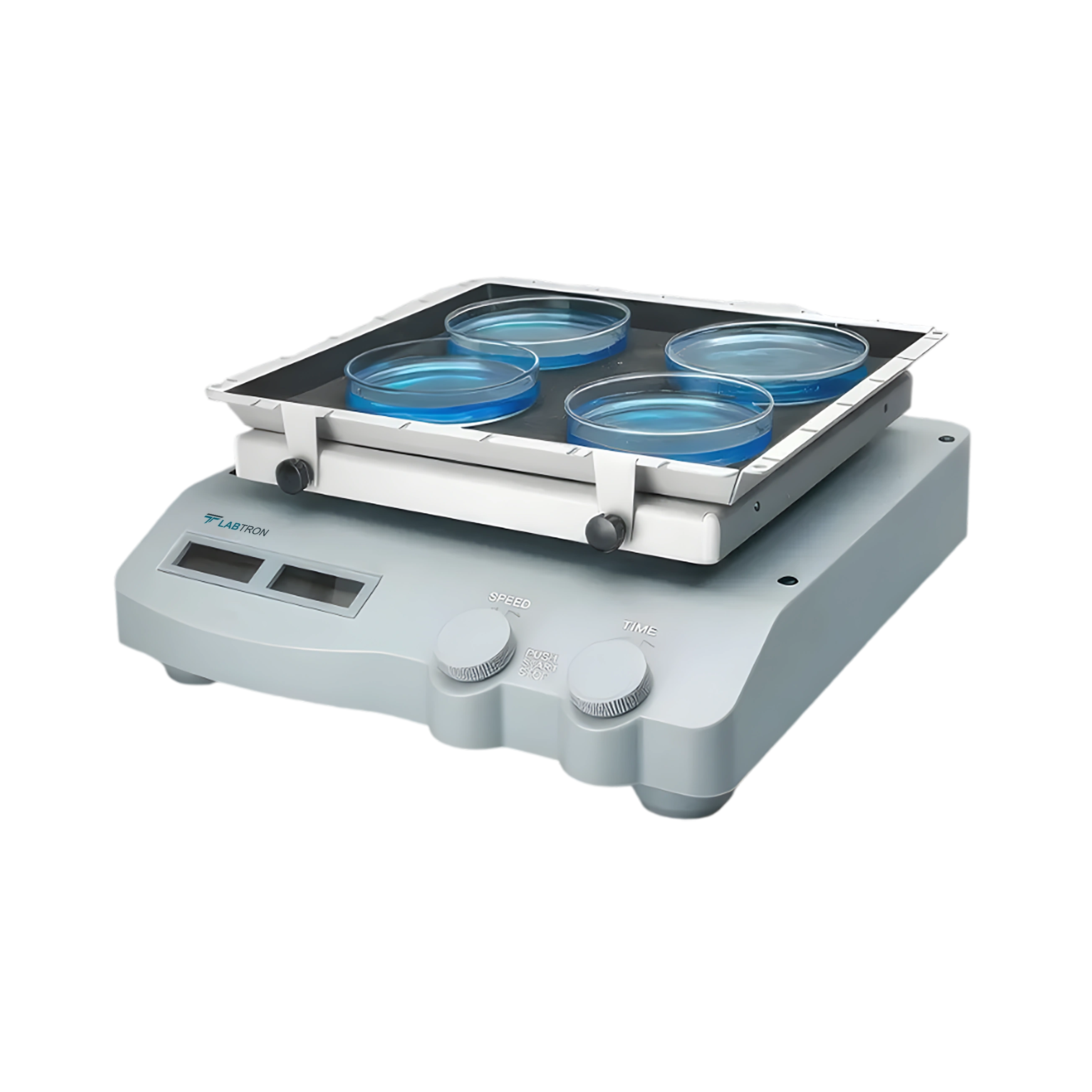

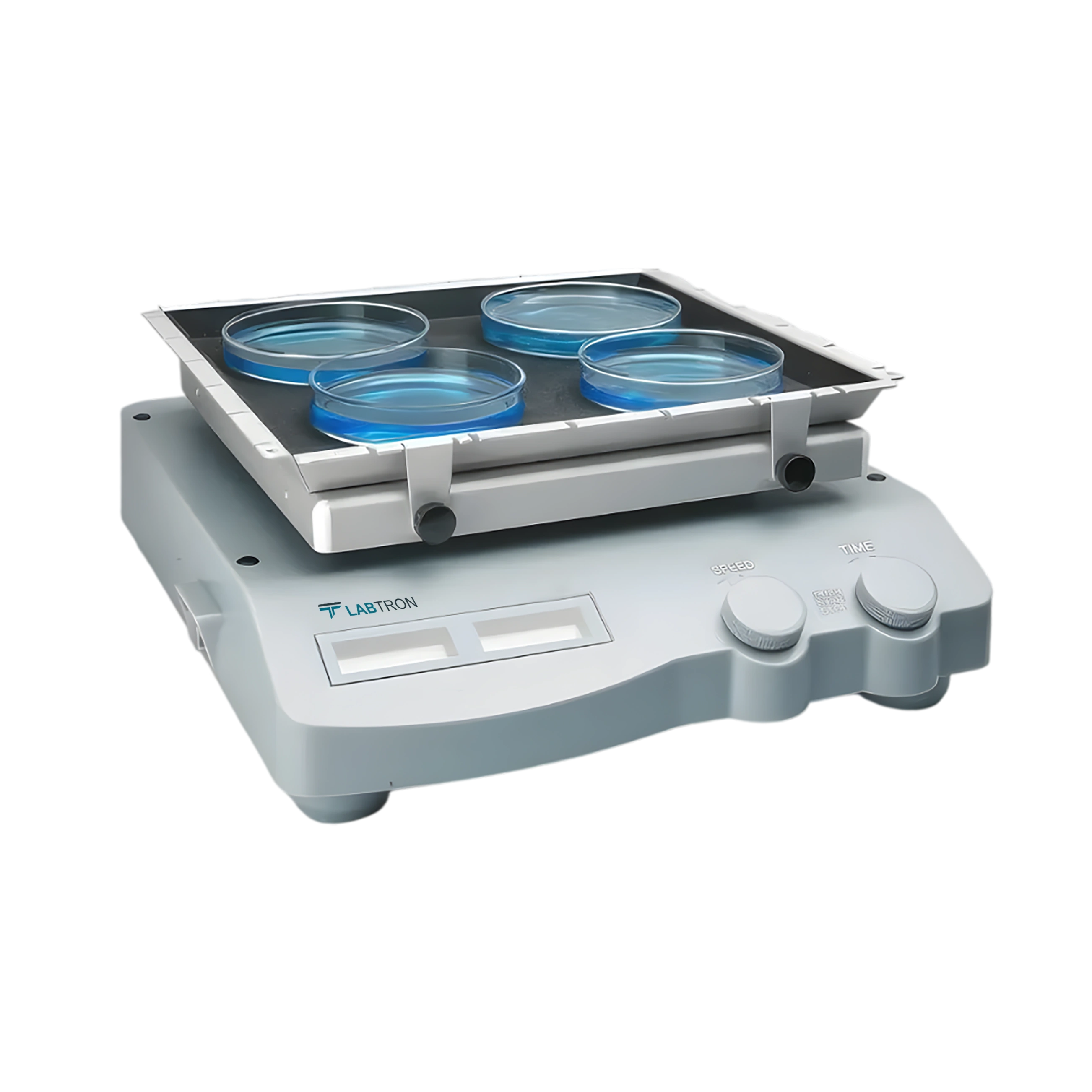

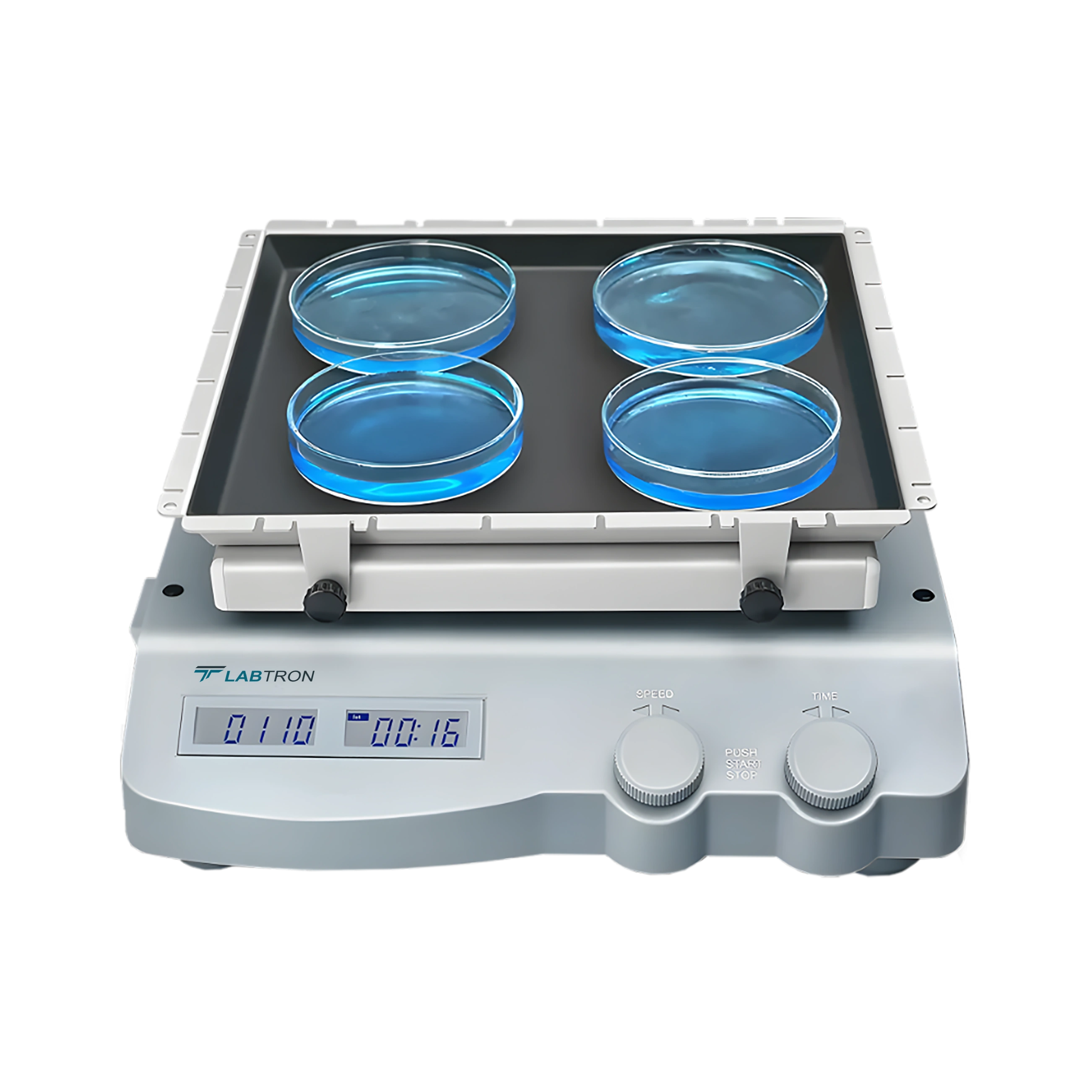

Our Linear Decolorizing Shaker LDS-A11 is designed for precise mixing and staining procedures. It is ideal for histology labs, research environments, and decolourization applications involving various sample formats.
| Accessory Name | Description | Quantity |
| Universal attachment with 3 bars | Multi-bar platform for attaching various holders and vessels | 1 pc |
| Black bar for universal attachment | Replacement bar compatible with the universal attachment | 1 pc |
| Fixing clip attachment | For securing standard flasks and lab containers | 1 pc |
| Lengthways roller attachment | Ideal for separation funnel oscillation and liquid-liquid extraction | 1 pc |
| Dish attachment with non-slip mat | Flat platform with anti-slip surface, suitable for general sample containers | 1 pc |
| Silicone mattress for 10 × 5–10 ml tubes | Tube holder compatible with dish attachments for small-volume tube mixing | 1 pc |
| Silicone mattress for 4 × 50 ml tubes | Tube holder compatible with dish attachments for larger tubes | 1 pc |
| Fixing clip for 25 ml flasks | Individual clamp for securely holding 25 ml flasks | 1 pc |
| Fixing clip for 50 ml flasks | Individual clamp for securely holding 50 ml flasks | 1 pc |
| Fixing clip for 100 ml flasks | Individual clamp for securely holding 100 ml flasks | 1 pc |
| Fixing clip for 200/250 ml flasks | Clamp for securely holding medium-sized flasks (200–250 ml) | 1 pc |
| Fixing clip for 500 ml flasks | Clamp for securely holding large 500 ml flasks | 1 pc |
| Transparent shield cover | Protective transparent cover for syphilis testing and sensitive applications | 1 pc |
| Sticky pad for shaker (23.8 × 23.8 cm) | Anti-slip sticky pad for stabilizing various containers at speeds up to 220 rpm | 1 pc |
| Connector sticks for double dish platform | Set of 4 sticks for connecting double dish platforms | 4 pcs/set |
Download catalog for
Linear Decolorizing Shaker LDS-A11 Catalog
Labtron Linear Decolorizing Shakers operate with linear motion to provide smooth and consistent sample mixing. They ensure uniform agitation to enhance experimental accuracy, reliability, and repeatability across various lab applications. These models feature separate digital displays for time and speed, enabling clear and efficient operation. Their brushless DC motors, adjustable speed ranges, and versatile platforms accommodate different sample sizes and requirements. Our shakers are ideal for hybridization, staining, diagnostics, and general laboratory mixing using a variety of vessels.

The Linear Decolorizing Shaker LDS-A11 accommodates various container types, including flasks, tubes, and trays. Its dish platform with a non-slip mat and optional sticky pad ensure stable placement. Multiple accessories allow flexibility for different volumes. This makes it ideal for labs handling diverse sample sizes in a single protocol.
Our Linear Decolorizing Shaker LDS-A11 provides gentle agitation, making it suitable for delicate samples. The linear motion reduces foam formation and helps maintain the integrity of fragile materials. Users can adjust the speed to meet different application needs. It's especially useful in protocols where controlled mixing is critical.
Our The Linear Decolorizing Shaker LDS-A11 includes a stable base and anti-slip components for secure operation. Optional transparent shields add protection during use with sensitive or infectious samples. Users should ensure correct placement of vessels to prevent imbalance. The unit also features overload protection to enhance operational safety.
The Accessories for Linear Decolorizing Shaker LDS-A11 depend on your sample type and vessel size. For tubes, silicone mattresses are available in different configurations. Flasks of various volumes can be secured using dedicated fixing clips. Consult your application requirements to choose the correct combination.
Labtron Linear Decolorizing Shaker LDS-A11 supports speeds up to 220 rpm, suitable for most mixing needs. While it can handle moderate agitation, it is optimized for low to medium-speed decolorizing protocols. The linear motion ensures sample stability at higher speeds. For high-speed shaking, balanced load and accessory compatibility are essential.
The Linear Decolorizing Shaker is designed to provide back-and-forth motion for consistent sample agitation. Labtron’s linear motion helps ensure even mixing, making it highly effective for staining, destaining, and hybridization procedures. This motion style enhances interaction between samples and reagents, resulting in reproducible outcomes. It is especially useful for tasks requiring gentle but thorough mixing. The shaker is well-suited for applications in molecular biology, diagnostics, and biochemistry labs.
Labtron’s Linear Decolorizing Shaker offers direct linear agitation, which promotes uniform exposure of samples to reagents. This motion is ideal when splash control and directional movement are important for sample integrity. It minimizes turbulence, reducing the risk of cross-contamination or sample loss. Compared to orbital shakers, linear motion provides more controlled contact. This makes it preferred in protocols like membrane hybridization and gentle extraction procedures.
Our Linear Decolorizing Shaker is compatible with various lab containers such as flasks, Petri dishes, beakers, and microplates. Our units offer multiple platform options to support different vessel sizes and formats. You can mix samples of varying volumes without the need for frequent platform changes. This flexibility makes it efficient for labs handling diverse experimental needs. It also supports multitasking and batch processing in busy environments.
Labtron’s Linear Decolorizing Shaker is equipped for both continuous and timed operations to meet protocol demands. It features a maintenance-free brushless DC motor that ensures reliable performance over long periods. Over-speed protection adds an extra layer of safety during extended use. The unit is designed to maintain consistent speed without overheating or vibration issues. This makes it ideal for long-term hybridization or incubation protocols.
The Linear Decolorizing Shaker provides straight-line agitation that ensures consistent movement across the sample surface. Labtron’s linear motion is more directional, reducing turbulence and splash risks compared to orbital options. The design supports applications requiring gentle but firm agitation. Our shakers are preferred for membrane washes and nucleic acid hybridization.
