Nucleic Acid Extraction System LNES-A11 is a completely automated system for extracting and purifying DNA from a range of sources. In just a few minutes, this procedure can handle numerous samples each day and offer quick, consistent, and repeatable findings. In a single run, this small device can handle 32 big volume samples up to a needed quantity. This device is a turnkey solution that provides lab with everything you need to automate high speed purifications.
| Sample Capacity | 32 samples |
| Sample Volume | 20 to 500 µl |
| Working Volume | 20 µl to 1000 µl |
| Sample Throughput | 1 to 32 |
| Extraction Time | 15 to 40 min/round |
| Extraction Method | Magnetic Bead Recovery |
| Magnetic Bead Recovery | > 98% |
| Extracting the difference between holes | CV ≤ 3% |
| Heating Temperature | 8 independent heating modules, customize lysis and elution temperature |
| Oscillating Mixing | Low, medium and high 3 gears are adjustable and fluctuation range can be adjusted with the reagent volume |
| Reagent Type | Magnetic bead open platform |
| Internal Program | Can store up to > 100 groups of programs |
| Built-in Air Duct | No |
| UV Radiation | Yes |
| Package Size (W×D×H) | 580×510×700 mm |
| Gross Weight | 51 kg |
This device is compatible with PCR diagnostics kits and also has requirement in several fields such as Forensic Samples, Sequencing, Cloning, Routine sample preparation, Genetic screening, Microbiology testing and Plant molecular biology research.
Available Range :

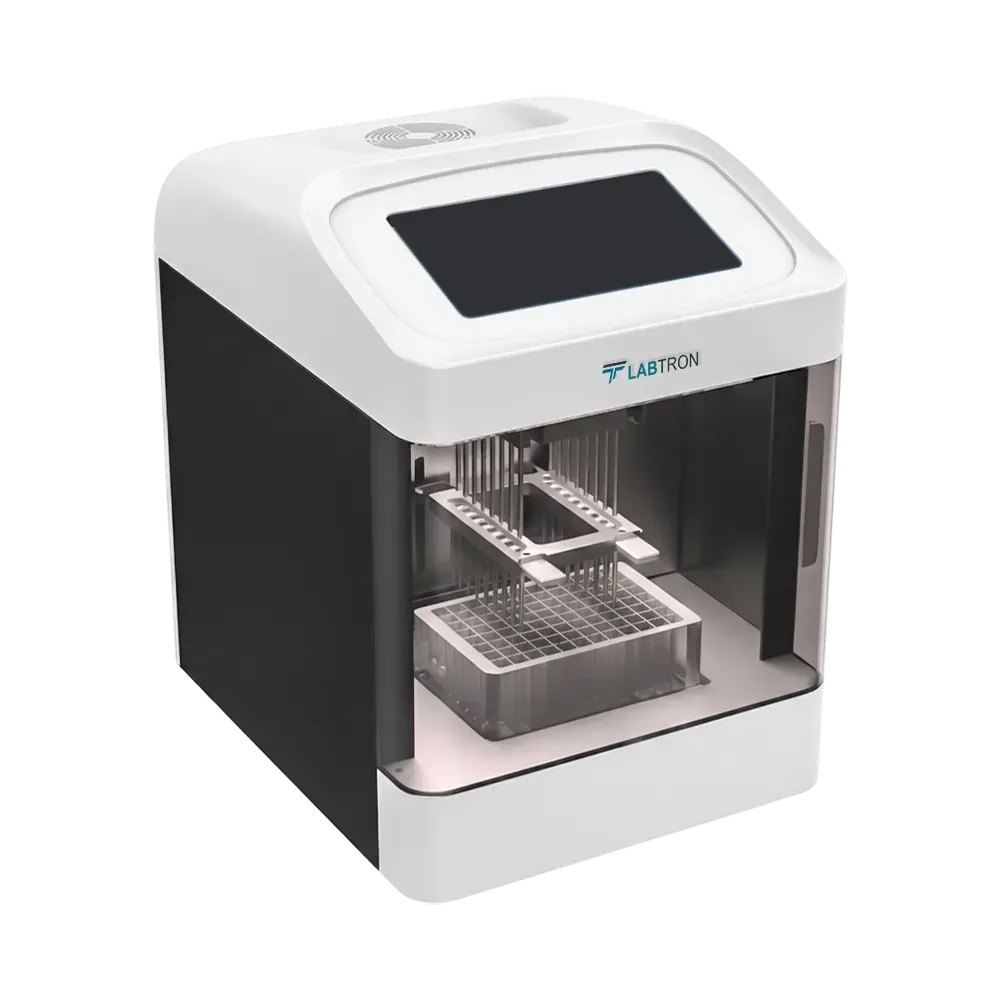

Nucleic Acid Extraction System LNES-A10 : 1 to 8 samples Nucleic Acid Extraction System LNES-A11 : 32 samples Nucleic Acid Extraction System LNES-A12 : 48 samples Nucleic Acid Extraction System LNES-A13 : 1 to 96 Nucleic Acid Extraction System LNES-B10 : 32 samples Nucleic Acid Extraction System LNES-B11 : 96 well
