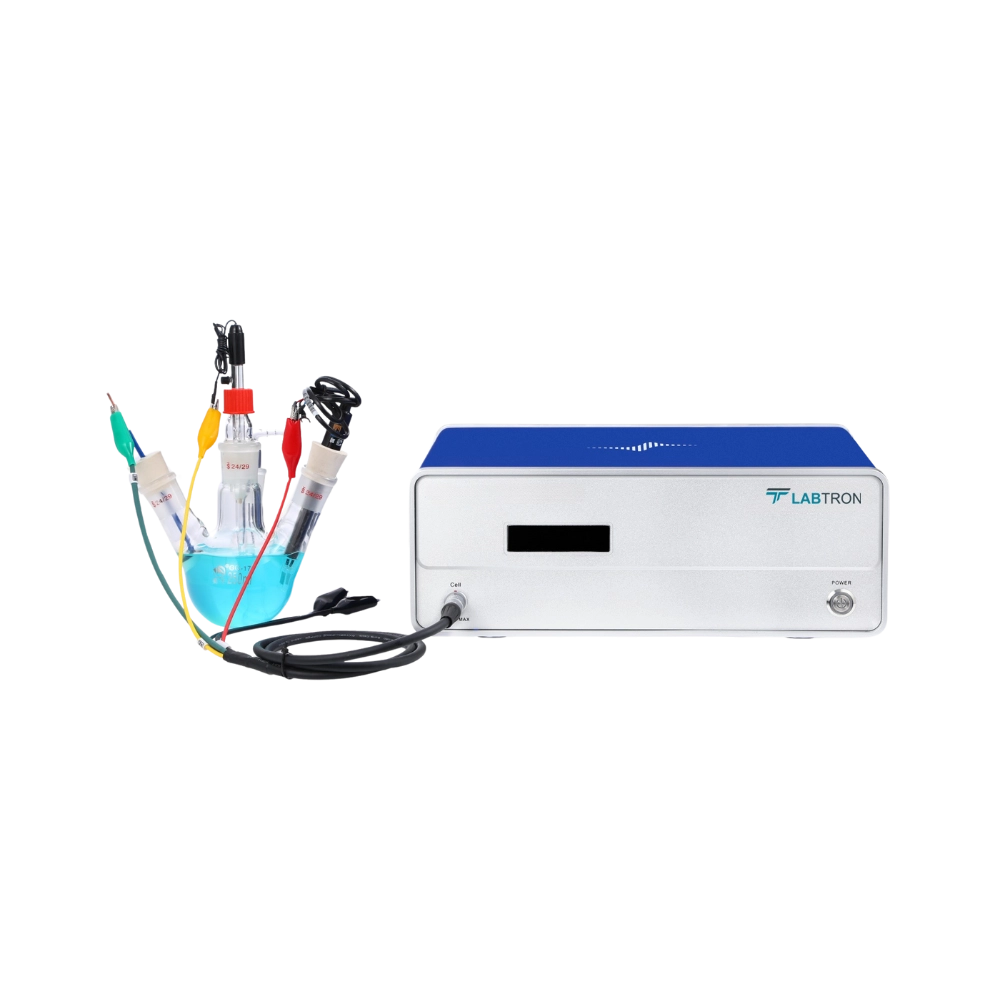

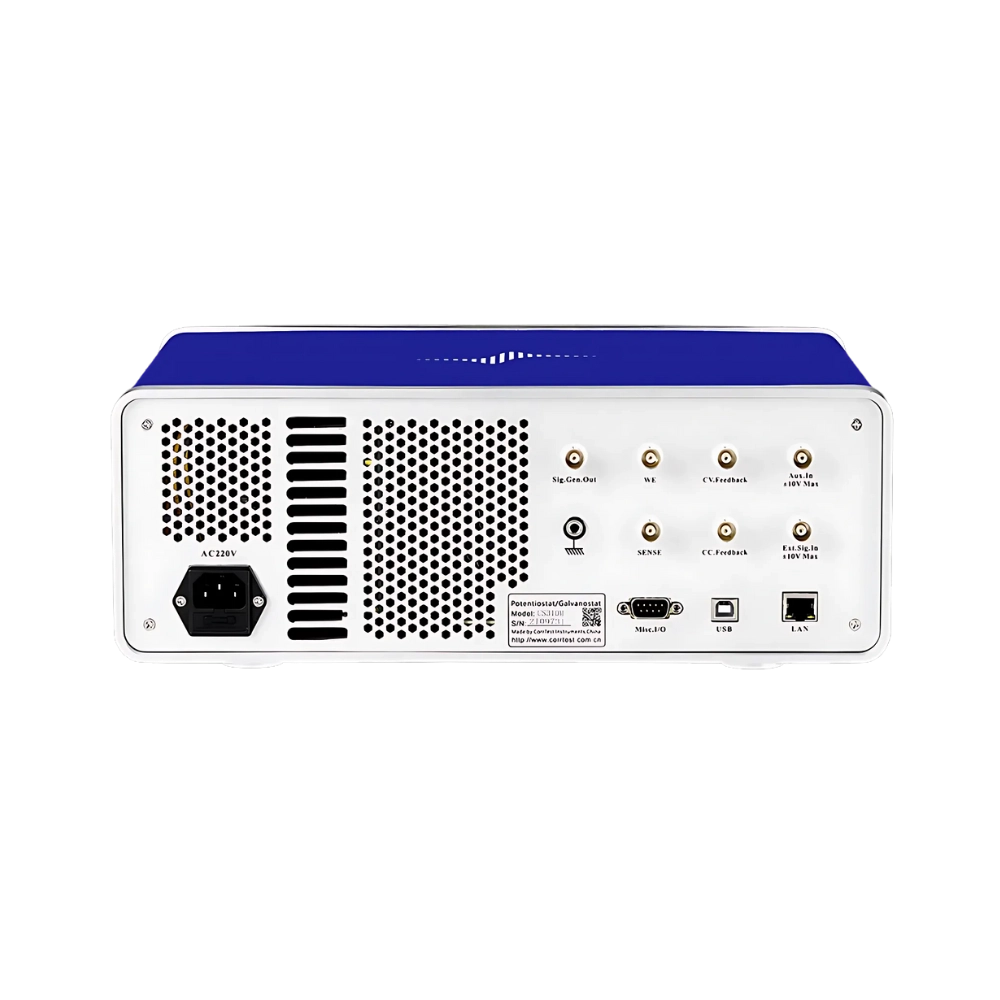

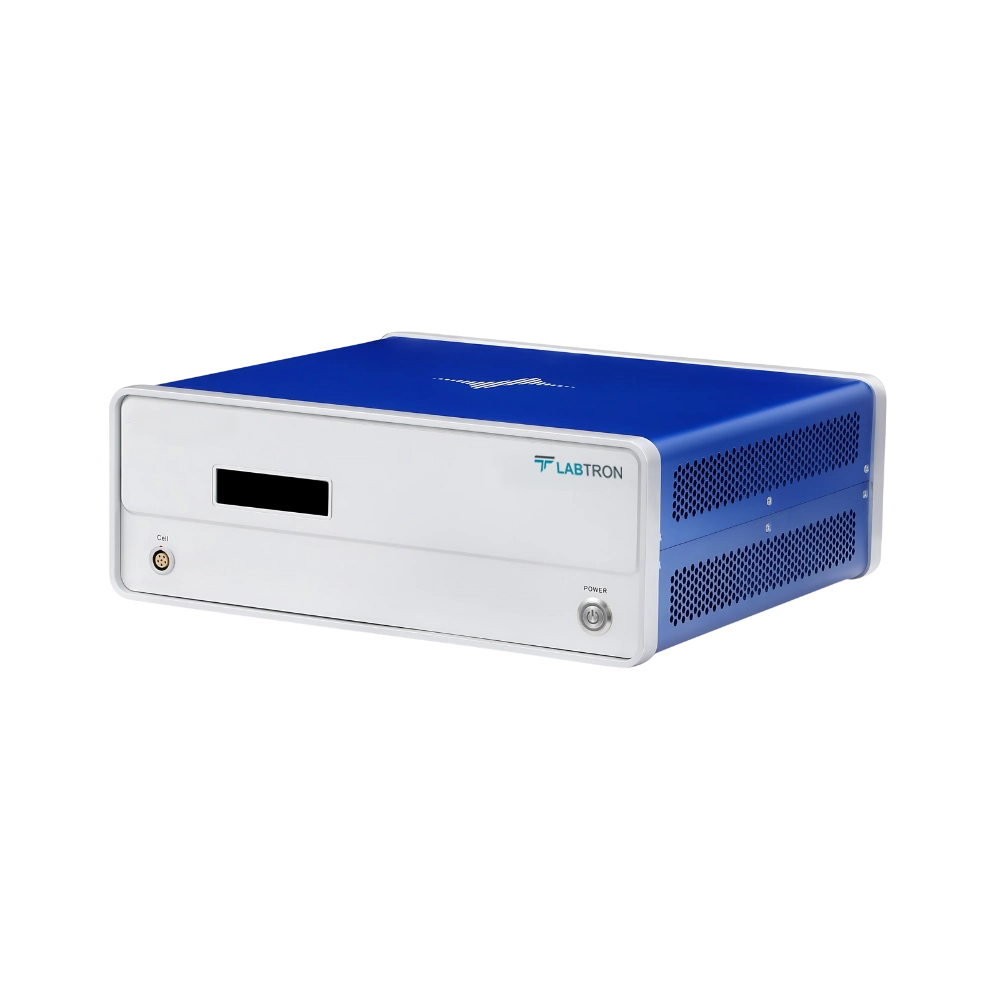

Potentiostat LPT-A10

Name: Potentiostat LPT-A10
Brand: Labtron
SKU: LPT-A10
Rating: 4.8 (979 reviews)

Potentiostat LPT-A10 supports CV scan rate from 0.001mV to 10,000V/s for flexible and correct analysis. It ensures high-resolution measurement with advanced signal processing capabilities. Integrates multi-channel functionality for simultaneous multiple electrode evaluation. Features over-voltage protection ensuring safe operation during process. Compatible with leading analysis software for enhanced data interpretation.

Request Quote

Electrode System	2-, 3-, or 4-electrode system
Potential Control Range	±10V
Potential Control Accuracy	0.1% × full range ± 1mV
Potential Resolution	10μV (>100Hz), 3μV (<10Hz)
Current Control Range	±2A
Current Control Accuracy	0.1% × full range
Current Sensitivity	1pA
Rise Time	<1μs (<10mA), <10μs (<2A)
Reference Electrode Input Impedance	10¹²Ω\|\|20pF
Current Range	2nA to 2A, 10 ranges
Compliance Voltage	±21V
Maximum Current Output	2A
CV and LSV Scan Rate	0.001mV to 10,000V/s
CA and CC Pulse Width	0.0001 to 65,000s
Current Increment During Scan	1mA at 1A/ms
Potential Increment During Scan	0.076mV at 1V/ms
SWV Frequency	0.001 to 100kHz
DPV and NPV Pulse Width	0.0001 to 1000s
AD Data Acquisition	16-bit at 1 MHz, 20-bit at 1 kHz
DA Resolution	16-bit, setup time: 1μs
Minimum Potential Increment (CV)	0.075mV
IMP Frequency	10μHz to 1MHz
Low-pass Filters	Covering 8-decade
Operating System	Windows 10/11
Interface	USB 2.0
Signal Generator Frequency Range	10μHz to 1MHz
AC Amplitude	1mV to 2500mV
DC Bias	-10 to +10V
Output Impedance	50Ω
Waveform Types	Sine, triangular, and square wave
Wave Distortion	<1%
Scanning Modes	Logarithmic/linear, increase/decrease
Signal Analyzer Integral Time	Minimum: 10ms or cycle time; Maximum: 10⁶ cycles or 10⁵s
Measurement Delay	0 to 10⁵s
Potential Automatic Compensation Range	-10V to +10V
Current Compensation Range	-1A to +1A
Bandwidth	8-decade frequency range, automatic/manual setting
Dimensions	365mm×305mm×160mm
Weight	6.5kg

High-resolution voltage control
Multi-electrode system support
Fast response rise time
Advanced noise-reduction technology
Programmable experimental workflows available

Our Potentiostat LPT-A10 supports advanced research in energy materials like Li-ion batteries, solar cells, and super capacitors, enabling studies in electrosynthesis, corrosion protection, electrodeposition, and electro catalysis for HER, OER, ORR, and CO₂RR.

Instrument Host (CS350M)	1
CS Studio Software	1
Power Cable	1
USB Cable	1
Electrode Cable	2
Dummy Cell	1

Saturated Calomel Electrode	Saturated Calomel
Ag/AgCl Reference Electrode	Only Ag/AgCl
Hg/HgO Reference Electrode	Only Hg/HgO
Mercury/Mercurous Sulfate Electrode	Only Mercury/Mercurous Sulfate
Non-aqueous Ag/Ag+ Reference Electrode	Only Non-aqueous Ag/Ag+
Platinum Conductivity Electrode	Pt
Platinum Plate Electrode 1	99.95%, 10×10×0.1mm
Platinum Plate Electrode 2	99.95%, 10×10×0.2mm
Platinum Plate Electrode 3	99.95%, 20×20×0.1mm
Platinum Plate Electrode 4	99.95%, 20×20×0.2mm
Platinum Plate Electrode 5	99.95%, 20×20×0.3mm
Platinum Wire Counter Electrode	-
Platinum Mesh Electrode 1	10×10mm
Platinum Mesh Electrode 2	20×20mm
Graphite Rod	-
Graphite Electrode	Only graphite
Glassy Carbon Working Electrode 1	Ø3mm
Glassy Carbon Working Electrode 2	Ø2mm
Glassy Carbon Working Electrode 3	Ø4mm/Ø5mm
L-shape Glassy Carbon Working Electrode 1	Ø3mm
L-shape Glassy Carbon Working Electrode 2	Ø2mm
L-shape Glassy Carbon Working Electrode 3	Ø4mm/Ø5mm
Metal Electrode	-
Platinum Working Electrode 1	99.95%, Ø2mm
Platinum Working Electrode 2	99.95%, Ø3mm
Gold Working Electrode 1	99.95%, Ø2mm
Gold Working Electrode 2	99.95%, Ø3mm
Silver Working Electrode	Only Silver
Titanium Working Electrode	Only Titanium
Copper Working Electrode	Only Copper
Aluminum Working Electrode	Only Aluminum
Nickel Working Electrode	Only Nickel
Zinc Working Electrode	Only Zinc
Lead Working Electrode	Only Lead
Cadmium Working Electrode	Only Cadmium
Iron Working Electrode	Only Iron
Palladium Working Electrode	Only Palladium
RIDE Glassy carbon Disk electrode	Internal-Screw
RIDE Glassy carbon disk electrode	External-Screw
RRDE (RRDE- Glassy carbon disk, Pt ring electrode Compatible to PINE's RRDE rotator equipment)	-
RDE (Compatible to ALS RRDE rotator: Glassy carbon disk electrode Disk	Diameter 5mm, Insulator diameter 12mm, length 25mm
RRDE (Compatible to ALS rotator: Glassy carbon disk, Pt ring working electrode OD of ring electrode	Diameter 7mm, Inner diameter 5mm; Disk diameter 4mm, Insulator diameter 12mm, length 25mm
Pt Wire Counter Electrode	Platinum
Glass Electrolytic Cell 1	4 ports 150ml
Glass Electrolytic Cell 2	4 ports 250ml
Glass Electrolytic Cell 3	4 ports 500ml
Glass Electrolytic Cell 4	4 ports 1000ml ( Include salt bridge and gas inlet/outlet pipe)
Corrosion Cell	5 ports 500mL (Includes all electrodes)
Jacketed Glass Cell (Non-sealed) 1	50ml
Jacketed Glass Cell (Non-sealed) 2	100ml
Jacketed Glass Cell (Non-sealed) 3	150ml
Jacketed Glass Cell (Sealed) 1	50ml
Jacketed Glass Cell (Sealed) 2	100ml
Jacketed Glass Cell (Sealed) 3	150ml
H-cells 1	Non sealed
H-cells 2	Sealed
Photoelectrochemical Cell (Quartz) 1	30×30×30mm
Photoelectrochemical Cell (Quartz) 2	35×15×45mm
Photoelectrochemical Cell (Quartz) 3	40×40×40mm
Photoelectrochemical Cell (Quartz) 4	50×50×50mm,
Photoelectrochemical Cell 1	Non sealed
Photoelectrochemical Cell 2	Sealed
Photoelectrochemical H-Cells	Sealed
Spectroelectrochemical Cell	-
Coating Evaluation Cell	-
Electrolytic Cell (Non-sealed) 1	50/100ml
Electrolytic Cell (Non-sealed) 2	150/200/250ml
Seal Electrolytic Cell 1	50ml
Seal Electrolytic Cell 2	100ml
Seal Electrolytic Cell 3	150ml
Seal Electrolytic Cell 4	250ml
Flat Corrosion Cell 1	None-Jacketed
Flat Corrosion Cell 2	Jacketed
Glass Cell + Teflon Cap	-
Battery Test Cell	-
Cell Stand 1	-
Simple Cell Stand	-
Electrode Polishing Kit	-
Faraday Cage	-
Specimen Clamp	-
Specimen Holder	-
Electrode Cable	-
Coin Cell Measuring Cable	-

Download catalog for
Potentiostat LPT-A10 Catalog

Download manual for
Potentiostat LPT-A10 Manual

Models of Potentiostat

Labtron Potentiostat provides controls and measures electrical potential between electrodes to maintain constant voltage. They feature advanced digital displays for real-time monitoring and enhanced user-friendly interface operation. Their high-resolution capabilities provide detection of minute current defaults and fluctuations. They are equipped with storage capacity, enabling large-scale data collection without loss or delay. Our Potentiostat ensures electrochemical evaluation, supporting battery testing, corrosion analysis, and fuel cell research.
