Labtron ESR Analyzers utilize the Westergren analysis method coupled with an infrared sensor-based measuring principle. They are capable of processing multiple samples simultaneously, making them suitable for high-volume laboratories. read more
ESR Analyzer LESR-A10 offers a rapid detection rate of 80 samples per hour with a measurement range of 0 to 150mm. It utilizes an infrared detection method for measurement. Samples can be loaded at any moment and measurements can be taken at any desired time. Utilizes advanced optical testing principles to overcome reading errors commonly found in manual methods.
| Measurement Method | Infrared detection |
| Analysis Result | Westergren ESR value (mm/hour) |
| Measurement Range | 0 to 150mm/h |
| Analysis Time | 30 minutes or 60 minutes selectable |
| Sampling Interval | 3 min |
| Throughput | Maximum 80 tests/hour |
| Analysis Channels | 40 |
| Loading Capacity | 40 samples at the same time |
| Temperature Compensation | Refer to 18℃ automatically (selectable) |
| Result Resolution | 1mm/1h and 1mm/2h |
| Blood Level Range | 46mm to 64mm |
| HCT Range | 0.2 to 1.0 |
| Repeatability and Consistency | 0 to 10 mm/h, SD≤ 1.5 mm/h, >10 mm/h, CV≤15% |
| Reading Accuracy | 0.2mm |
| Coincidence | ≥ 90% |
| Display | 7-inch color LCD touchscreen |
| Communication Interface | RS232 serial interface |
| Printer | Built-in thermal printer |
| Power Supply | AC 100 – 240,220V 50/60Hz |
| External Size (W × D × H) | 360 × 300 × 180mm |
| Package Size (W × D × H) | 395 × 335 × 375mm |
| Net Weight | 7.3kg |
| Gross Weight | 10Kg |
ESR Analyzer analyses the erythrocyte sedimentation rate analysis, and it is suitable for use in hospital inspection departments, medical laboratories, research institutes, universities, disease control centers, and similar settings.
Available Range :

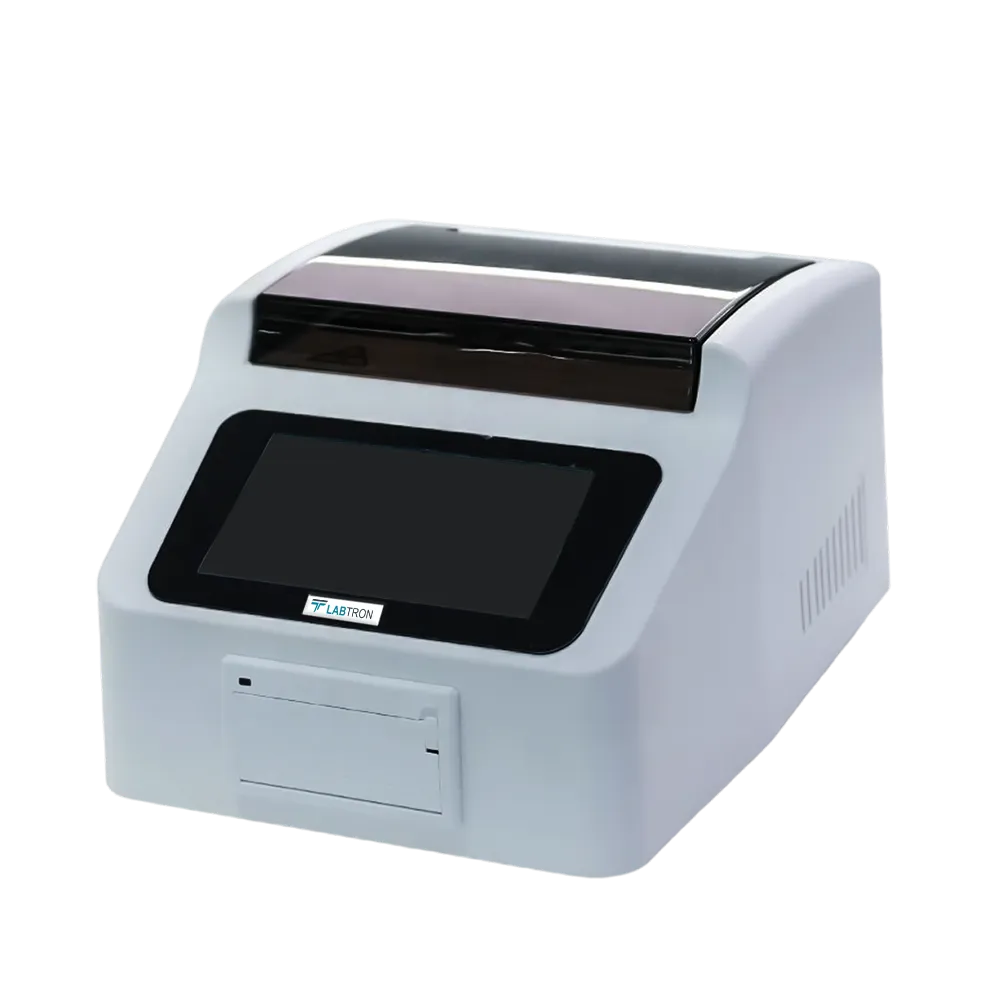

ESR Analyzer LESR-A11 : Infrared sensor ESR Analyzer LESR-A10 : Infrared detection
