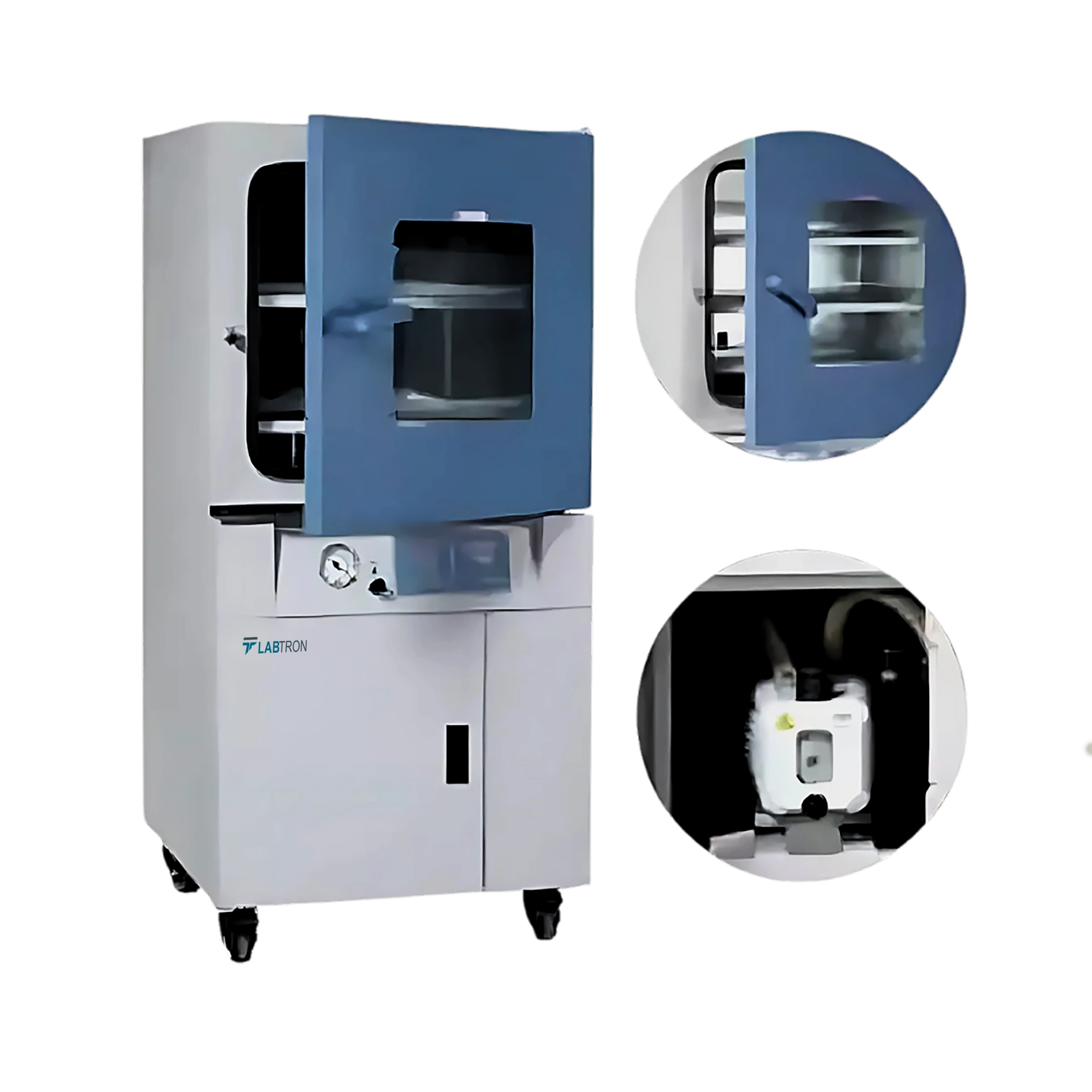

Vacuum oven LVO-B13 comes with 125 L chamber capacity and dual layer tempered glass door for clear observation of the sample during process. The vacuum degree controlled by full-automatic electromagnetism valve which make the degree control more exact. Designed with vacuum pump as standard accessory and LCD digital display to observe temperature. The outer of the oven is made using stainless steel sheets that are enamel and painted to prevent from corrosion. Designed for drying of materials that are heat sensitive, reactive with oxidation reactions, prone to contamination due to excess water level. For the rapid drying of the materials, the controlled atmosphere can be created using the inert gases.
Request Quote| Chamber volume | 125 L |
| Temperature range | RT+10 to 200°C |
| Temperature resolution | 0.1°C |
| Temperature stability | ±1°C |
| Display | LED Digital Display |
| Vacuum Pump | Yes, Standard Accessory |
| Vacuum Degree | 133 Pa |
| Vacuum Sensor | Resistance silicon tube pressure sensor |
| Vacuum Control Range | 10 to 106Pa |
| Observation window | Dual layered tempered glass |
| Chamber material | Stainless Steel 304 (1Cr18Ni9Ti) |
| Shelves | 3 pcs |
| Shelves material | Aluminum tray |
| Ambient temperature | 5 to 40°C |
| Power | 2050 W |
| Power supply | AC 220 V, 50 Hz |
| Interior dimension (W × D × H) | 500 × 500 × 500 mm |
| Exterior dimension (W × D × H) | 660 × 640 × 1400 mm |
| Packing dimension (W × D × H) | 770 × 800 × 1590 mm |
| Gross weight | 218 kg |
Vacuum Oven used for drying of thermo-sensitive, oxidative materials easily. It can be filled with inert gases for a rapid drying of some compound material.
Available Range :
Chamber volume : 215 L Chamber volume : 90 L Chamber volume : 10 L Chamber volume : 50 L Chamber volume : 90 L Chamber volume : 24 LRelated Models :
| Model | Chamber volume | Temperature range | Temperature resolution | Temperature stability | Display | Vacuum Pump | Vacuum Degree | Vacuum Sensor | Vacuum Control Range | Observation window | Chamber material | Shelves | Shelves material | Ambient temperature | Power | Power supply | Interior dimension (W × D × H) | Exterior dimension (W × D × H) | Packing dimension (W × D × H) | Gross weight |
| LVO-A10 | 215 L | RT+10 to 200°C | 0.1°C | ±1°C | LED Display | Yes, Standard Accessory | 133 Pa | - | - | Dual layered tempered glass | Stainless Steel 304 | 3pcs (Independent temp. control) | Aluminum tray | 5 to 40°C | 2100 W | AC 220 V, 50 Hz | 560 × 600 ×640 mm | 720 × 820 ×1750 mm | 900 × 840 × 1750 mm | 313 kg |
| LVO-A11 | 90 L | RT+10 to 200°C | 0.1°C | ±1°C | LED Display | Yes, Standard Accessory | 133 Pa | - | - | Dual layered tempered glass | Stainless Steel 304 | 2 pcs (Independent temp. control) | Aluminum tray | 5 to 40°C | 1350 W | AC 220 V, 50 Hz | 450 × 450 × 450 mm | 610 × 590 × 1350 mm | 750 × 710 × 1540 mm | 215 kg |
| LVO-A12 | 10 L | RT+10 to 200°C | 0.1°C | ±1°C | LED Display | No, offered as Optional Accessory | 133 Pa | - | - | Dual layered tempered glass | Stainless Steel 304 | 2 pcs | Aluminum tray | 5 to 40°C | 400 W | AC 220 V, 50 Hz | 220 × 210 × 220 mm | 500 × 375 × 410 mm | 600 × 530 × 590 mm | 40 kg |
| LVO-A13 | 50 L | RT+10 to 200°C | 0.1°C | ±1°C | LED Display | No, offered as Optional Accessory | 133 Pa | - | - | Dual layered tempered glass | Stainless Steel 304 | 3 pcs | Aluminum tray | 5 to 40°C | 1450 W | AC 220 V, 50 Hz | 415 × 370 × 345 mm | 730 × 560 × 550 mm | 640 × 810 × 720 mm | 96 kg |
| LVO-A14 | 90 L | RT+10 to 200°C | 0.1°C | ±1°C | LED Display | No, offered as Optional Accessory | 133 Pa | - | - | Dual layered tempered glass | Stainless Steel 304 | 2 pcs | Aluminum tray | 5 to 40°C | 870 W | AC 220 V, 50 Hz | 450 × 450 × 450 mm | 740 × 610 × 591 mm | 880 × 760 × 910 mm | 169 kg |
| LVO-A15 | 24 L | RT+10 to 200°C | 0.1°C | ±1°C | LED Display | No, offered as Optional Accessory | 133 Pa | - | - | Dual layered tempered glass | Stainless Steel 304 | 1 pcs | Aluminum tray | 5 to 40°C | 700 W | AC 220 V, 50 Hz | 300 × 300 × 275 mm | 605 × 490 × 450 mm | 680 × 560 × 620 mm | 56 kg |
| LVO-A16 | 30 L | RT+10 to 200°C | 0.1°C | ±1°C | LED Display | No, offered as Optional Accessory | 133 Pa | - | - | Dual layered tempered glass | Stainless Steel 316 | 1 pcs | Aluminum tray | 5 to 40°C | 550 W | AC 220 V, 50 Hz | 320 × 320 × 300 mm | 630 × 510 × 490 mm | 710 × 580 × 650 mm | 65 kg |
| LVO-A17 | 30 L | RT+10 to 65°C | 0.1°C | ±1°C | LED Display | No, offered as Optional Accessory | 133 Pa | - | - | Dual layered tempered glass | Stainless Steel 304 | 1 pcs | Aluminum tray | 5 to 40°C | 300 W | AC 220 V, 50 Hz | 320 × 320 × 300 mm | 610 × 510 × 490 mm | 710 × 580 × 650 mm | 65 kg |
| LVO-A18 | 50 L | RT+10 to 65°C | 0.1°C | ±1°C | LED Display | No, offered as Optional Accessory | 133 Pa | - | - | Dual layered tempered glass | Stainless Steel 304 | 2 pcs | Aluminum tray | 5 to 40°C | 650 W | AC 220 V, 50 Hz | 415 × 370 × 345 mm | 730 × 560 × 550 mm | 640 × 810 × 720 mm | 96 kg |
| LVO-B10 | 913 L | RT+10 to 200°C | 0.1°C | ±1°C | LCD Digital Display | Yes, Standard Accessory | 133 Pa | Resistance silicon tube pressure sensor | 10 to 106Pa | Dual layered tempered glass | Stainless Steel 304 (1Cr18Ni9Ti) | 5 pcs (Independent temp. control) | Aluminum tray | 5 to 40°C | 5600 W | AC 380 V, 50 Hz | 750 × 1160 × 1050 mm | 1400 × 1395 × 2010 mm | 2220 × 1650 × 1300 mm | 1014 kg |
| LVO-B11 | 431 L | RT+10 to 200°C | 0.1°C | ±1°C | LED Digital Display | Yes, Standard Accessory | 133 Pa | Resistance silicon tube pressure sensor | 10 to 106Pa | Dual layered tempered glass | Stainless Steel 304 (1Cr18Ni9Ti) | 4 pcs (Independent temp. control) | Aluminum tray | 5 to 40°C | 3800 W | AC 380 V, 50 Hz | 630 × 810 × 845 mm | 1000 × 1040 × 1855 mm | 1140 × 1200 × 2030 mm | 656 kg |
| LVO-B12 | 215 L | RT+10 to 200°C | 0.1°C | ±1°C | LCD Digital Display | Yes, Standard Accessory | 133 Pa | Resistance silicon tube pressure sensor | 10 to 106Pa | Dual layered tempered glass | Stainless Steel 304 (1Cr18Ni9Ti) | 3 pcs (Independent temp. control) | Aluminum tray | 5 to 40°C | 2100 W | AC 220 V, 50 Hz | 560 × 600 × 640 mm | 720 × 820 × 1750 mm | 920 × 860 × 1880 mm | 335 kg |
| LVO-B13 | 125 L | RT+10 to 200°C | 0.1°C | ±1°C | LED Digital Display | Yes, Standard Accessory | 133 Pa | Resistance silicon tube pressure sensor | 10 to 106Pa | Dual layered tempered glass | Stainless Steel 304 (1Cr18Ni9Ti) | 3 pcs | Aluminum tray | 5 to 40°C | 2050 W | AC 220 V, 50 Hz | 500 × 500 × 500 mm | 660 × 640 × 1400 mm | 770 × 800 × 1590 mm | 218 kg |
| LVO-B14 | 91 L | RT+10 to 200°C | 0.1°C | ±1°C | LCD Digital Display | Yes, Standard Accessory | 133 Pa | Resistance silicon tube pressure sensor | 10 to 106Pa | Dual layered tempered glass | Stainless Steel 304 (1Cr18Ni9Ti) | 2 pcs (Independent temp. control) | Aluminum tray | 5 to 40°C | 1350 W | AC 220 V, 50 Hz | 450×450×450 mm | 610 × 590 × 1350 mm | 750 × 710 × 1530 mm | 216 kg |
| LVO-B15 | 64 L | RT+10 to 200°C | 0.1°C | ±1°C | LED Digital Display | Yes, Standard Accessory | 133 Pa | Resistance silicon tube pressure sensor | 10 to 106Pa | Dual layered tempered glass | Stainless Steel 304 (1Cr18Ni9Ti) | 3 pcs | Aluminum tray | 5 to 40°C | 1800 W | AC 220 V, 50 Hz | 400×400×400 mm | 600 × 570 × 1390 mm | 670 × 730 × 1450 mm | 179 kg |
| LVO-B16 | 32 L | RT+10 to 200°C | 0.1°C | ±1°C | LCD Digital Display | Yes, Standard Accessory | 133 Pa | Resistance silicon tube pressure sensor | 10 to 106Pa | Dual layered tempered glass | Stainless Steel 304 (1Cr18Ni9Ti) | 2 pcs | Aluminum tray | 5 to 40°C | 1200 W | AC 220 V, 50 Hz | 320 × 320 × 320 mm | 550 × 490 × 1240 mm | 760 × 640 × 1300 mm | 145 kg |
