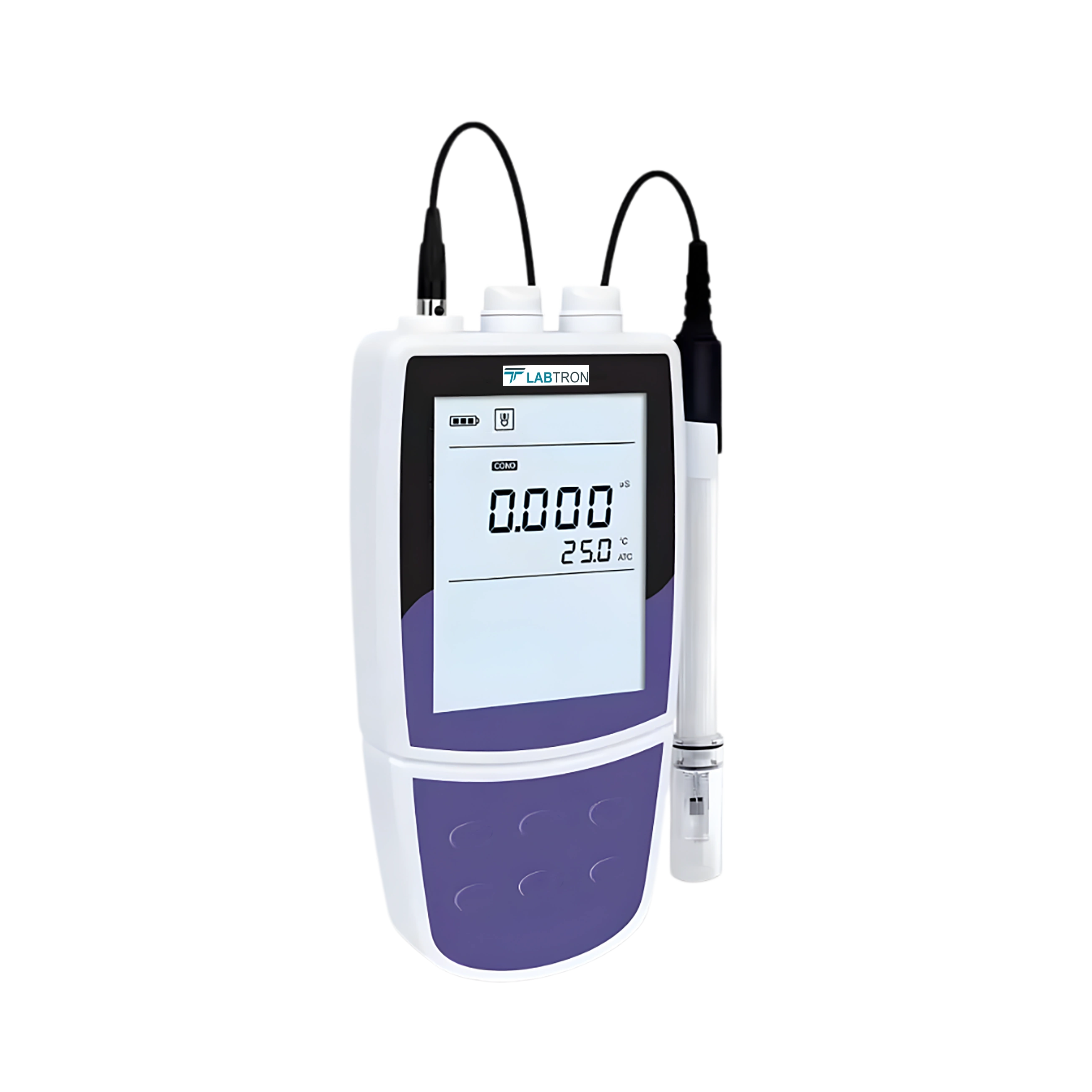

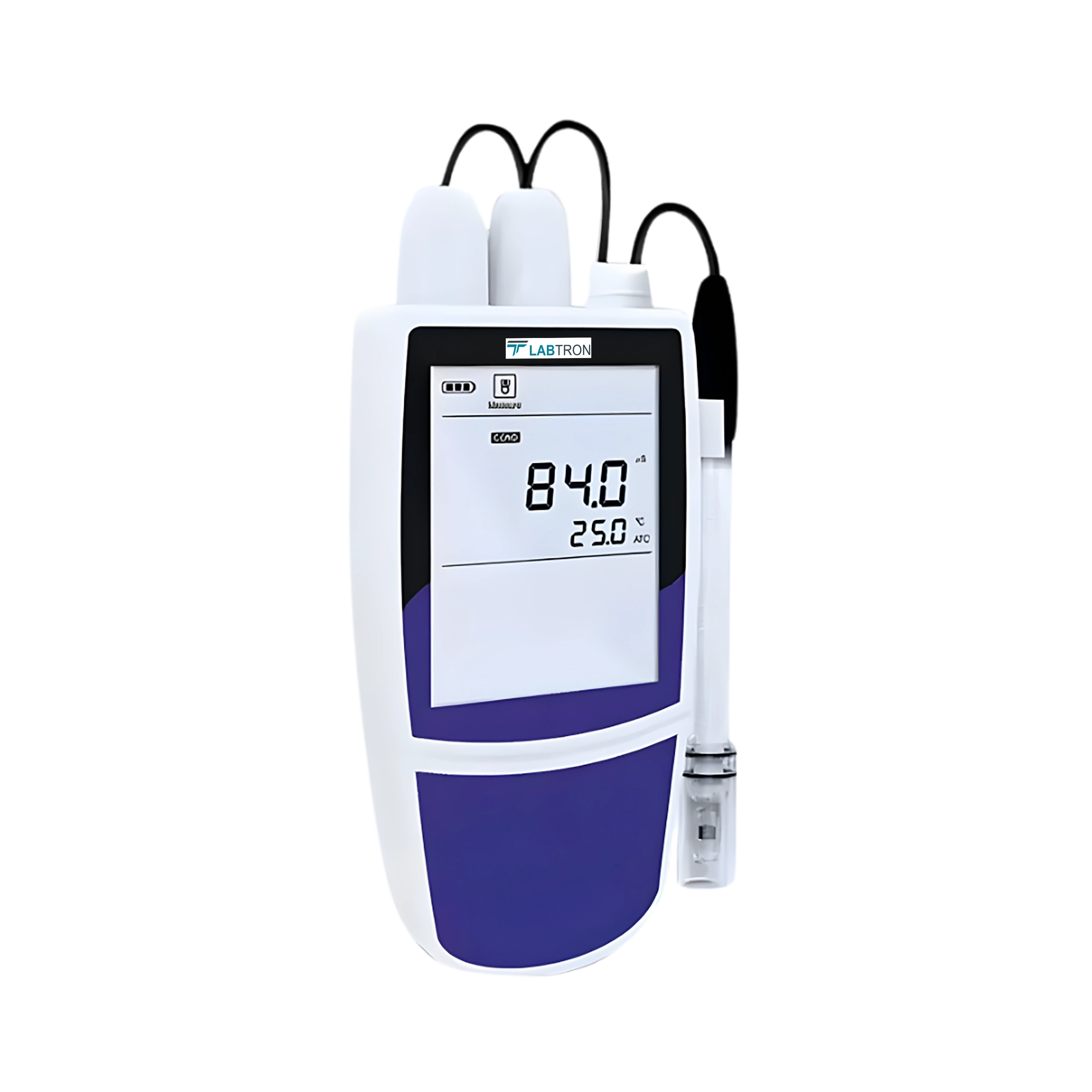

Portable Conductivity Meter LPCM-A12 is adapted with different modes for measuring quality of water on parameters such as conductivity, salinity and temperature. Due to its portable design, it is suitable for outdoor measurements i.e. on site water testing, remote area water testing and for research purpose. It is reliable and user friendly.
Request Quote| Conductivity |
|
||||||||||
| Salinity |
|
||||||||||
| Temperature |
|
||||||||||
| Temperature compensation | 0 to 100 °C, 32 to 212 ° F, Manual or Automatic | ||||||||||
| Temperature coefficient | Linear and Pure water compensation | ||||||||||
| Reference temperature | 20 °C or 25 °C | ||||||||||
| Stability conditions | Low or high | ||||||||||
| Cell constant | K= 0.1, 1, 10 or custom | ||||||||||
| Calibration due | 1 to 31 days or off | ||||||||||
| Memory | 500 data sets | ||||||||||
| Data hold | Manual or auto-end point | ||||||||||
| Connector | 6 pin mini plug | ||||||||||
| Power Control | Manual or Automatic (10, 20 or 30 minutes after last key pressed) | ||||||||||
| Power | 3 × 1.5 V AA batteries or DC 5 V power adapter | ||||||||||
| Dimension (L × W × H) | 170 × 85 × 30 mm | ||||||||||
| Weight | 300 g |
Used for quality testing of water on different parameters in research and development labs, water resources and plants in nearby or remote area.
| Number of accessories | Accessories name |
| 1 | Conductivity electrode (range: 10 µS/cm to 10 mS/cm) |
| 2 | Temperature probe |
| 3 | Standard calibration solutions (84 µS/cm, 1413 µS/cm, 12.88 mS/cm) |
| 4 | Carrying case |
| Number of accessories | Accessories name |
| 1 | Conductivity electrode for general application |
| 2 | Conductivity electrode (K= 0.1): Suitable for measuring the low conductivity liquids ( <10 µS/cm ) for pure water |
| 3 | Conductivity electrode (K= 10): Suitable for measuring the high conductivity liquids ( >20 mS/cm ) for sea water |
Available Range :
Conductivity : Conductivity measurement range : 0.01 to 20.00, 200.0, 2000 µS/cm, 20.00, 200 mS/cm Temperature : Temperature measuring range : 0 105 °C, 32 to 221 °F Temperature compensation : 0 to 100 °C, 32 to 212 ° F, Manual or Automatic Conductivity : Conductivity measurement range : 0.01 to 20.00, 200.0, 2000 µS/cm, 20.00, 200 mS/cm TDS : TDS range : 0 to 10.00, 100.0, 1000 ppm, 10.00, 100 ppt (Max. 200 ppt) Temperature : Temperature measuring range : 0 105 °C, 32 to 221 °F Temperature compensation : 0 to 100 °C, Manual or Automatic Conductivity : Conductivity measurement range : 0.01 to 20.00, 200.0, 2000 µS/cm, 20.00, 200 mS/cm Salinity : Salinity range : 0.00 to 80.00 ppt, 0.00 to 42.00 psu Temperature : Temperature measuring range : 0 105 °C, 32 to 221 °F Temperature compensation : 0 to 100 °C, 32 to 212 ° F, Manual or Automatic Conductivity : Conductivity measurement range : 0.01 to 20.00, 200.0, 2000 µS/cm, 20.00, 200 mS/cm TDS : TDS range : 0 10.00, 100.0, 1000 ppm, 10.00, 100 ppt (Max. 200 ppt) Salinity : Salinity range : 0.00 to 80.00 ppt, 0.00 to 42.00 psu Resistivity : Resistivity range : 0.00 to 20 MΩ Temperature : Temperature measuring range : 0 105 °C, 32 to 221 °F Temperature compensation : 0 to 100 °C, 32 to 212 ° F, Manual or Automatic| Model | Temperature compensation | Temperature coefficient | Reference temperature | Stability conditions | Cell constant | Calibration due | Memory | Data hold | Connector | Power Control | Power | Dimension (L × W × H) | Weight |
| LPCM-A10 | 0 to 100 °C, 32 to 212 ° F, Manual or Automatic | Linear | 25 °C | Low or high | K= 0.1, 1, 10 or custom | 1 to 31 days or off | 100 data sets | Manual or auto-end point | 6 pin mini plug | Manual or Automatic (10, 20 or 30 minutes after last key pressed) | 3 × 1.5 V AA batteries or DC 5 V power adapter | 170 × 85 × 30 mm | 300 g |
| LPCM-A11 | 0 to 100 °C, Manual or Automatic | Linear and Pure water compensation | 20 °C or 25 °C | Low or high | K= 0.1, 1, 10 or custom | 1 to 31 days or off | 500 data sets | Manual or auto-end point | 6 pin mini plug | Manual or Automatic (10, 20 or 30 minutes after last key pressed) | 3 × 1.5 V AA batteries or DC 5 V power adapter | 170 × 85 × 30 mm | 300 g |
| LPCM-A12 | 0 to 100 °C, 32 to 212 ° F, Manual or Automatic | Linear and Pure water compensation | 20 °C or 25 °C | Low or high | K= 0.1, 1, 10 or custom | 1 to 31 days or off | 500 data sets | Manual or auto-end point | 6 pin mini plug | Manual or Automatic (10, 20 or 30 minutes after last key pressed) | 3 × 1.5 V AA batteries or DC 5 V power adapter | 170 × 85 × 30 mm | 300 g |
| LPCM-A13 | 0 to 100 °C, 32 to 212 ° F, Manual or Automatic | Linear and Pure water compensation | 20 °C or 25 °C | Low or high | K= 0.1, 1, 10 or custom | 1 to 31 days or off | 500 data sets | Manual or auto-end point | 6 pin mini plug | Manual or Automatic (10, 20 or 30 minutes after last key pressed) | 3 × 1.5 V AA batteries or DC 5 V power adapter | 170 × 85 × 30 mm | 300 g |
