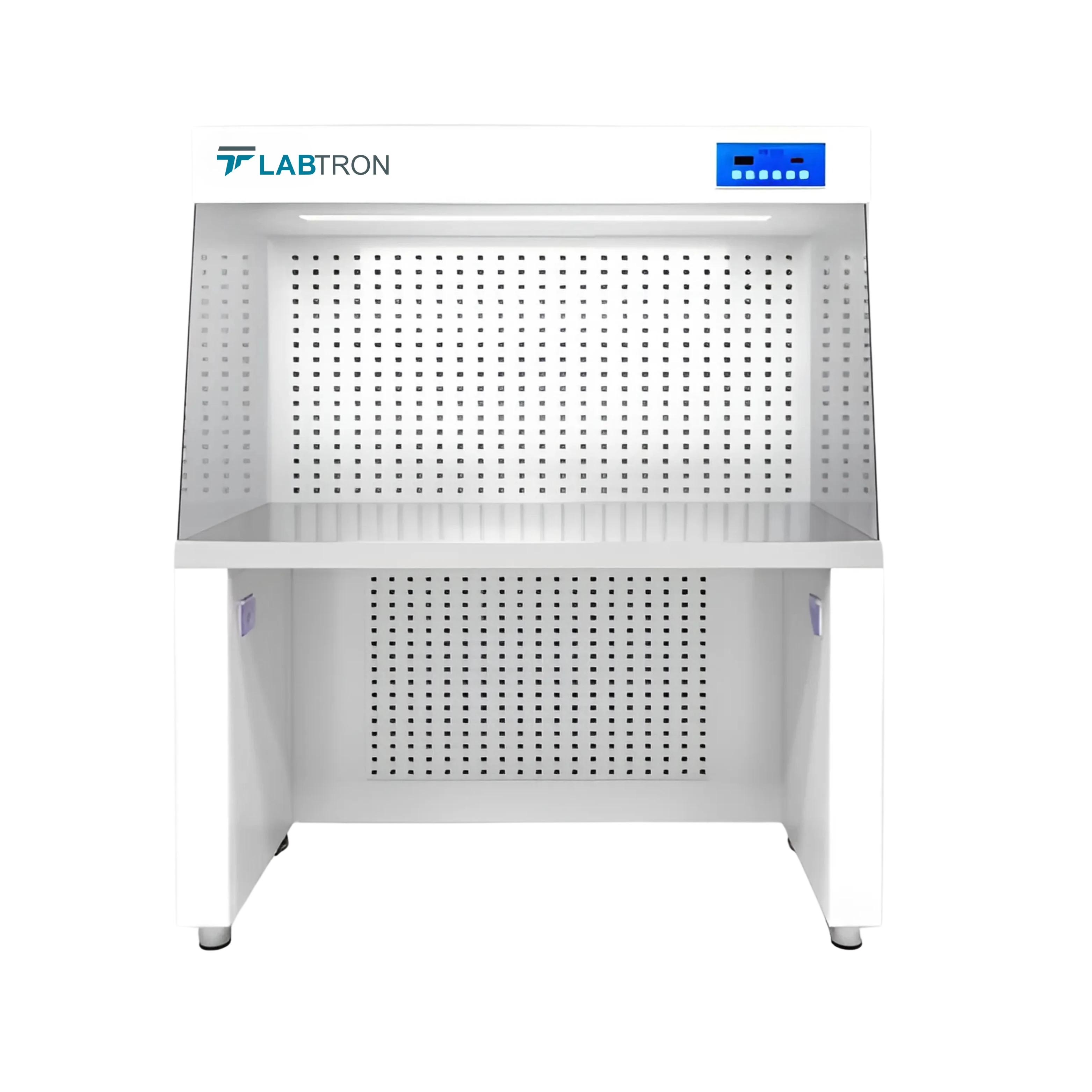

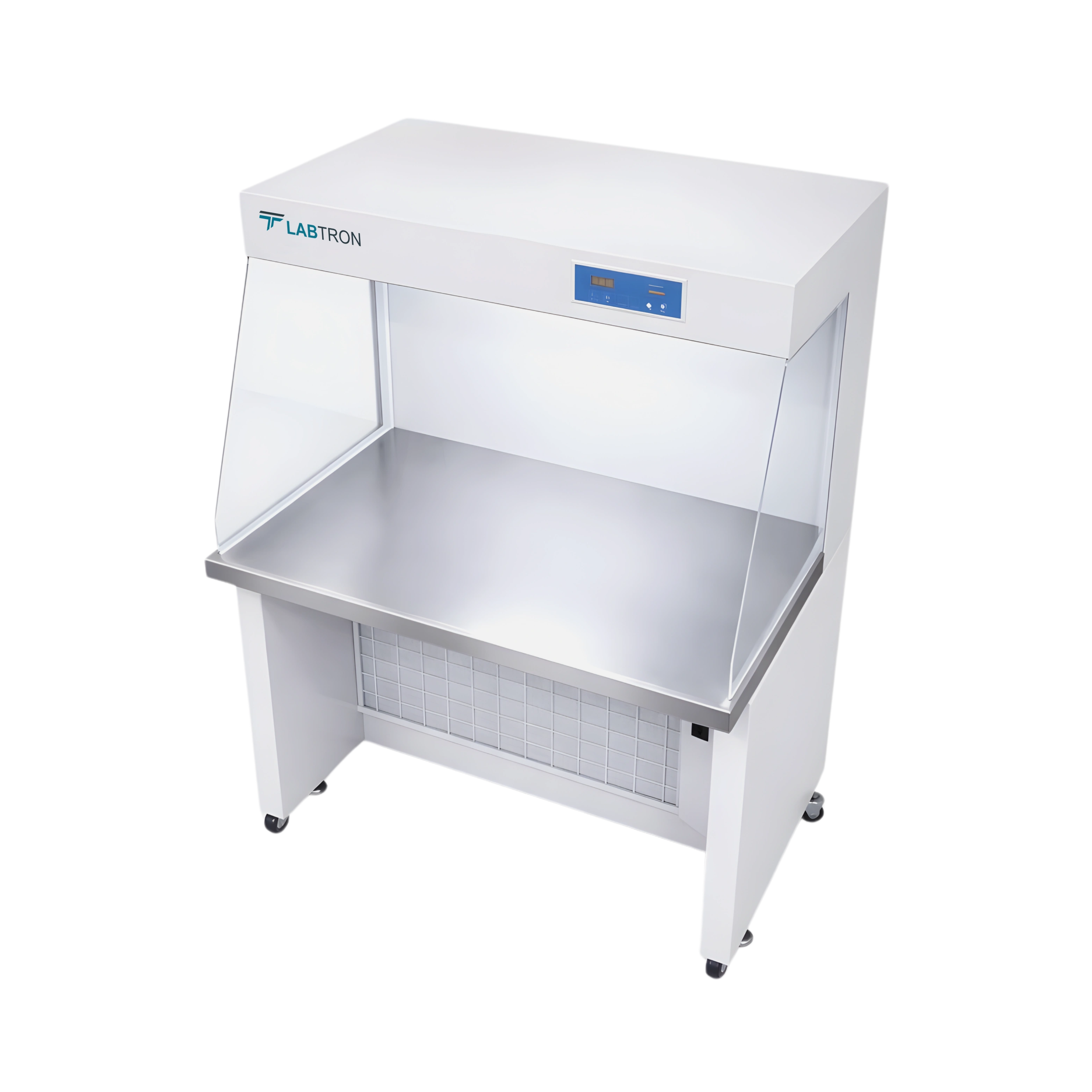

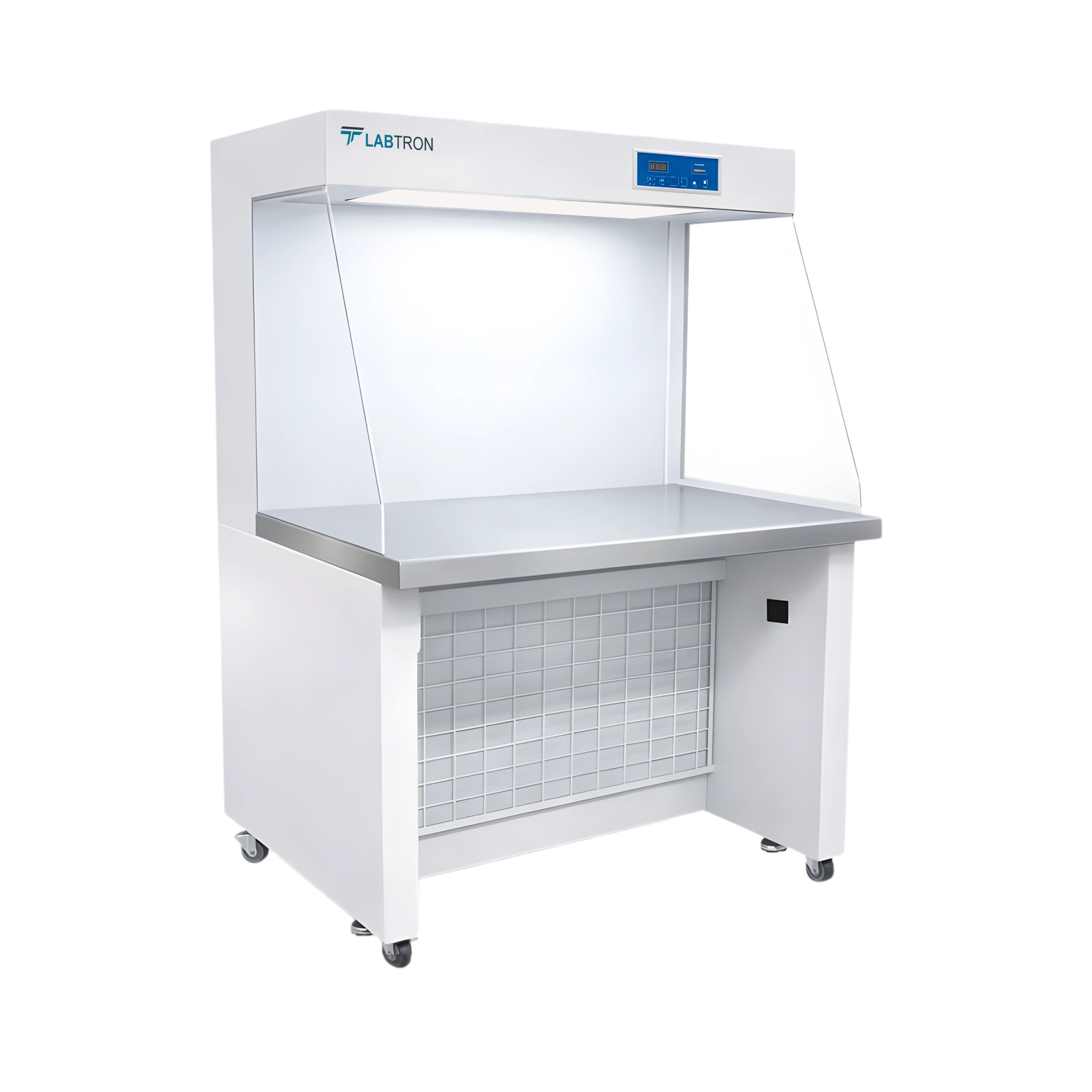

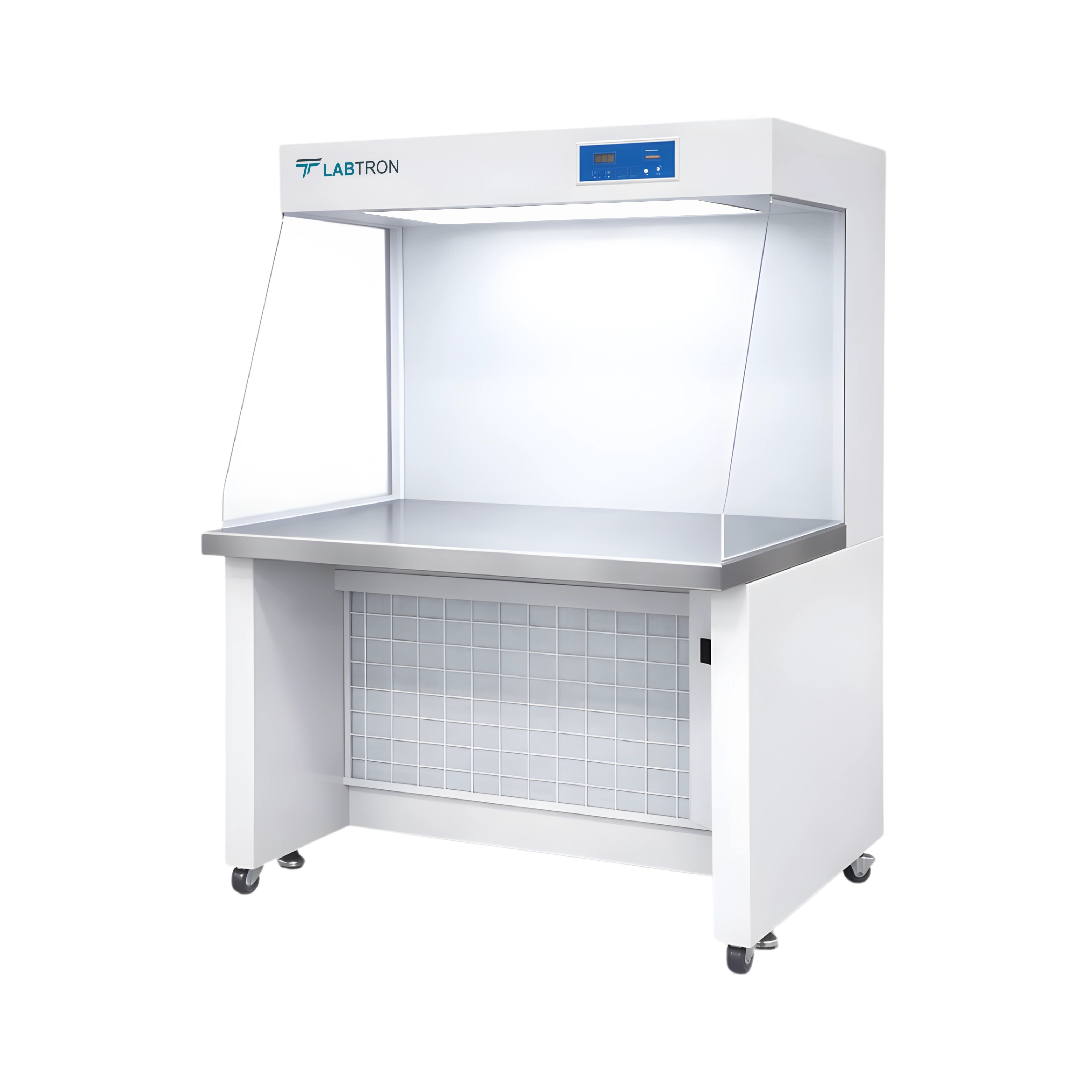

Horizontal laminar flow clean bench LHCB-B11

Horizontal laminar flow clean bench LHCB-B11 is an open desk type clean bench with safety glass side panels and provide unmediated HEPA-filtered air using thin mini-pleat air filter over the work area with purification rank of 100 to protect your work from contamination.

Request Quote

External dimension (W x L x H)	1200 x 820 x 1580 mm
Internal dimension (W x L x H)	1170 x 600 x 650 mm
Illumination	≥ 300 lux
Purification rank (ISO 14644-1 Std.)	100
Air flow	750-1100 m³⁄h
Noise	≤ 65 dB
Power	570 W
Power supply	220 V/50 Hz
LED standard	13x1
Filtration efficiency (% @ 0.3μm)	99.99
Average velocity	0.3-0.5 m/s
Net Weight	140 kg

Horizontal laminar flow
Class 100 purification
Cold rolled powder coated steel exterior
Polished stainless steel table board
Safety glass side panels
Super thin mini-pleat air filter to minimize the size of structure
Disposable pre-filter that not only protect the HEPA filters life but also ensure wind velocity
Low maintenance adjustable air system with light touch switch to maintain work area wind speed in ideal condition
Cabinet support with adjustable foot margin which can be dismantled
Power saving fluorescent lamp
Convenient to operate

Used in clean environments such as production plants and research laboratories, bio-pharmaceutical industry, hard disk and other electronic devices inspection, food Industry, drug and medical devices industries.

Available Range :

External dimension (W x L x H) : 1590 x 800 x 1800 mm External dimension (W x L x H) : 1340 x 800 x 1800 mm External dimension (W x L x H) : 1090 x 800 x 1800 mm External dimension (W x L x H) : 960 x 780 x 1580 mm External dimension (W x L x H) : 1200 x 820 x 1580 mm External dimension (W x L x H) : 1500 x 900 x 1580 mm

Related Models :

Model	External dimension (W x L x H)	Internal dimension (W x L x H)	Illumination	Purification rank (ISO 14644-1 Std.)	Air flow	Noise	Power	Power supply	LED standard	Filtration efficiency (% @ 0.3μm)	HEPA size (W x H x D)	Average velocity	Net Weight
LHCB-A10	1590 x 800 x 1800 mm	1430 x 620 x 575 mm	≥ 300 lux	100	-	≤ 61 dB	240 W	220 V/50 Hz	18X1	-	610 x 1470 x 69 mm	0.25-0.4 m/s	170 kg
LHCB-A11	1340 x 800 x 1800 mm	1180 x 620 x 575 mm	≥ 300 lux	100	-	≤ 61 dB	230 W	220 V/50 Hz	13x1	-	610 x 1220 x 69 mm	0.25-0.4 m/s	150 kg
LHCB-A12	1090 x 800 x 1800 mm	930 x 620 x 575 mm	≥ 300 lux	100	-	≤ 61 dB	220 W	220 V/50 Hz	9x1	-	610 x 970 x 69 mm	0.25-0.4 m/s	130 kg
LHCB-B10	960 x 780 x 1580 mm	930 x 600 x 650 mm	≥ 300 lux	100	600-950 m³⁄h	≤ 65 dB	290 W	220 V/50 Hz	9x1	99.99	-	0.3-0.5 m/s	120 kg
LHCB-B11	1200 x 820 x 1580 mm	1170 x 600 x 650 mm	≥ 300 lux	100	750-1100 m³⁄h	≤ 65 dB	570 W	220 V/50 Hz	13x1	99.99	-	0.3-0.5 m/s	140 kg
LHCB-B12	1500 x 900 x 1580 mm	1470 x 600 x 850 mm	≥ 300 lux	100	950-1400 m³⁄h	≤ 65 dB	575 W	220 V/50 Hz	18x1	99.99	-	0.3-0.5 m/s	160 kg
LVCB-A10	1000 x 700 x 1800 mm	900 x 650 x 600 mm	≥ 400 lux	100	600-950 m³⁄h	≤ 65 dB	124 W	220 V/50 Hz	9x1	99.99	-	0.25-0.45 m/s	130 kg
LVCB-A11	1200 x 700 x 1800 mm	1100 x 650 x 600 mm	≥ 400 lux	100	750-1100 m³⁄h	≤ 65 dB	127 W	220 V/50 Hz	13x1	99.99	-	0.25-0.45 m/s	145 kg
LVCB-A12	1500 x700 x 1800 mm	1400 x 650 x 600 mm	≥ 400 lux	100	950-1400 m³⁄h	≤ 65 dB	200 W	220 V/50 Hz	18X1	99.99	-	0.25-0.45 m/s	160 kg
LVCB-B10	1000 x 980 x 1900 mm	900 x 680 x 600 mm	≥ 300 lux	100	600-900 m³⁄h	≤ 65 dB	280 W	220 V/50 Hz	9x1	99.99	-	0.25-0.45 m/s	150 kg
LVCB-B11	1200 x 980 x 1900 mm	1100 x 680 x 600 mm	≥ 300 lux	100	800-1100 m³⁄h	≤ 65 dB	560 W	220 V/50 Hz	13x1	99.99	-	0.25-0.45 m/s	180 kg
LVCB-B12	1500 x 980 x 1900 mm	1400 x 680 x 600 mm	≥ 300 lux	100	1000-1500 m³⁄h	≤ 65 dB	580 W	220 V/50 Hz	18x1	99.99	-	0.25-0.45 m/s	210 kg

Model

External dimension (W x L x H)

Internal dimension (W x L x H)

Illumination

Purification rank (ISO 14644-1 Std.)

Air flow

Noise

Power

Power supply

LED standard

Filtration efficiency (% @ 0.3μm)

HEPA size (W x H x D)

Average velocity

Net Weight

LHCB-A10

1590 x 800 x 1800 mm

1430 x 620 x 575 mm

≥ 300 lux

100

≤ 61 dB

240 W

220 V/50 Hz

18X1

610 x 1470 x 69 mm

0.25-0.4 m/s

170 kg

LHCB-A11

1340 x 800 x 1800 mm

1180 x 620 x 575 mm

≥ 300 lux

100

≤ 61 dB

230 W

220 V/50 Hz

13x1

610 x 1220 x 69 mm

0.25-0.4 m/s

150 kg

LHCB-A12

1090 x 800 x 1800 mm

930 x 620 x 575 mm

≥ 300 lux

100

≤ 61 dB

220 W

220 V/50 Hz

9x1

610 x 970 x 69 mm

0.25-0.4 m/s

130 kg

LHCB-B10

960 x 780 x 1580 mm

930 x 600 x 650 mm

≥ 300 lux

100

600-950 m³⁄h

≤ 65 dB

290 W

220 V/50 Hz

9x1

99.99

0.3-0.5 m/s

120 kg

LHCB-B11

1200 x 820 x 1580 mm

1170 x 600 x 650 mm

≥ 300 lux

100

750-1100 m³⁄h

≤ 65 dB

570 W

220 V/50 Hz

13x1

99.99

0.3-0.5 m/s

140 kg

LHCB-B12

1500 x 900 x 1580 mm

1470 x 600 x 850 mm

≥ 300 lux

100

950-1400 m³⁄h

≤ 65 dB

575 W

220 V/50 Hz

18x1

99.99

0.3-0.5 m/s

160 kg

LVCB-A10

1000 x 700 x 1800 mm

900 x 650 x 600 mm

≥ 400 lux

100

600-950 m³⁄h

≤ 65 dB

124 W

220 V/50 Hz

9x1

99.99

0.25-0.45 m/s

130 kg

LVCB-A11

1200 x 700 x 1800 mm

1100 x 650 x 600 mm

≥ 400 lux

100

750-1100 m³⁄h

≤ 65 dB

127 W

220 V/50 Hz

13x1

99.99

0.25-0.45 m/s

145 kg

LVCB-A12

1500 x700 x 1800 mm

1400 x 650 x 600 mm

≥ 400 lux

100

950-1400 m³⁄h

≤ 65 dB

200 W

220 V/50 Hz

18X1

99.99

0.25-0.45 m/s

160 kg

LVCB-B10

1000 x 980 x 1900 mm

900 x 680 x 600 mm

≥ 300 lux

100

600-900 m³⁄h

≤ 65 dB

280 W

220 V/50 Hz

9x1

99.99

0.25-0.45 m/s

150 kg

LVCB-B11

1200 x 980 x 1900 mm

1100 x 680 x 600 mm

≥ 300 lux

100

800-1100 m³⁄h

≤ 65 dB

560 W

220 V/50 Hz

13x1

99.99

0.25-0.45 m/s

180 kg

LVCB-B12

1500 x 980 x 1900 mm

1400 x 680 x 600 mm

≥ 300 lux

100

1000-1500 m³⁄h

≤ 65 dB

580 W

220 V/50 Hz

18x1

99.99

0.25-0.45 m/s

210 kg
