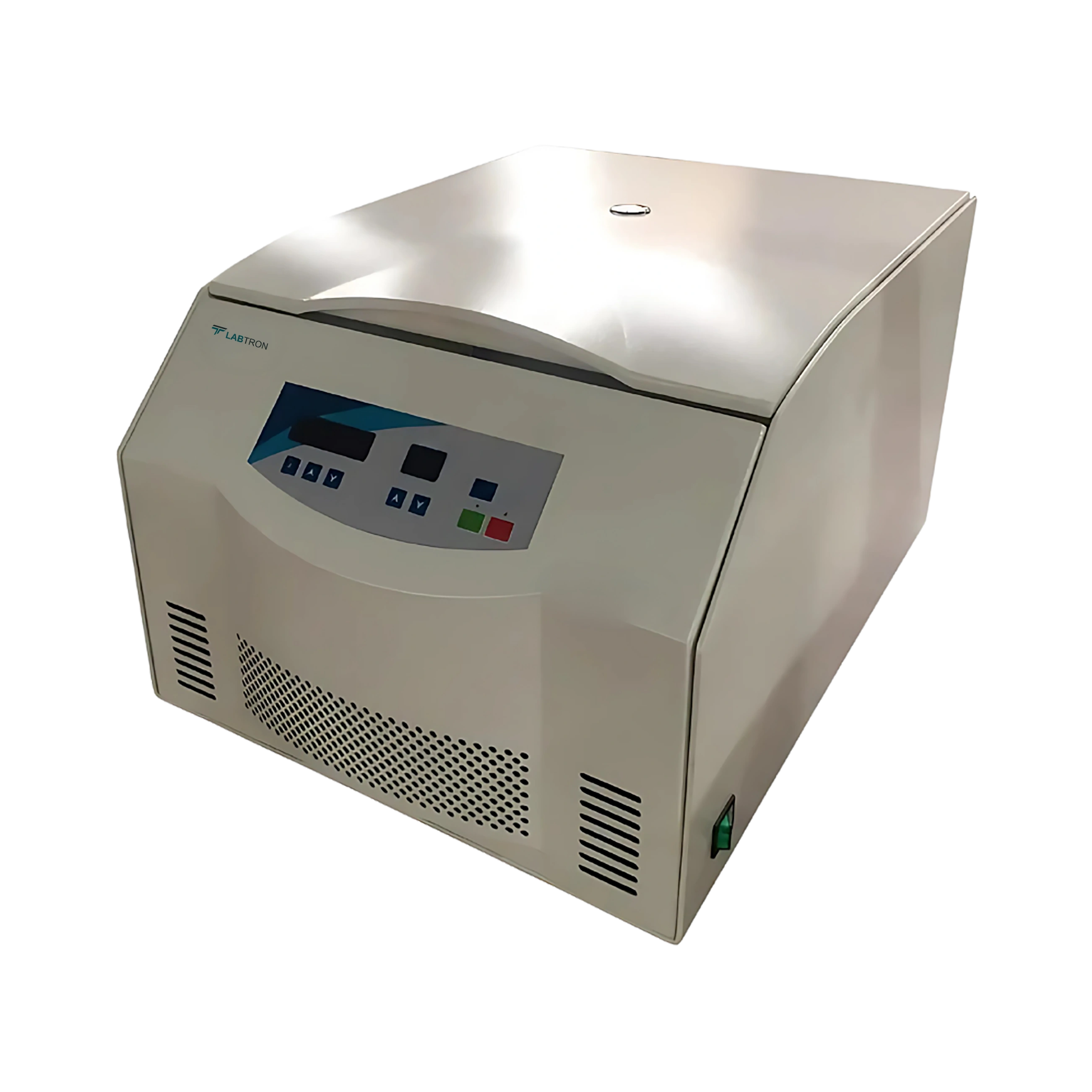

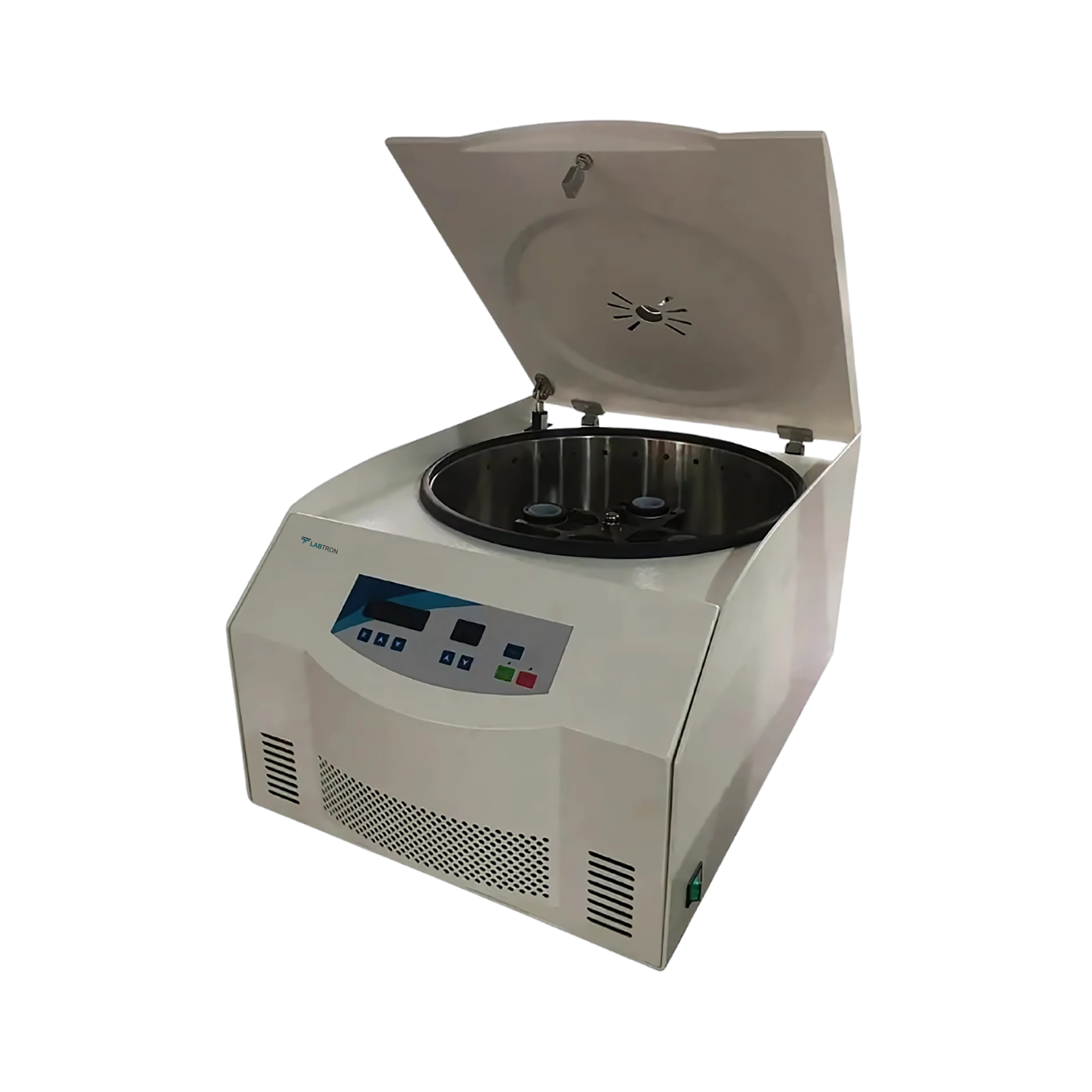

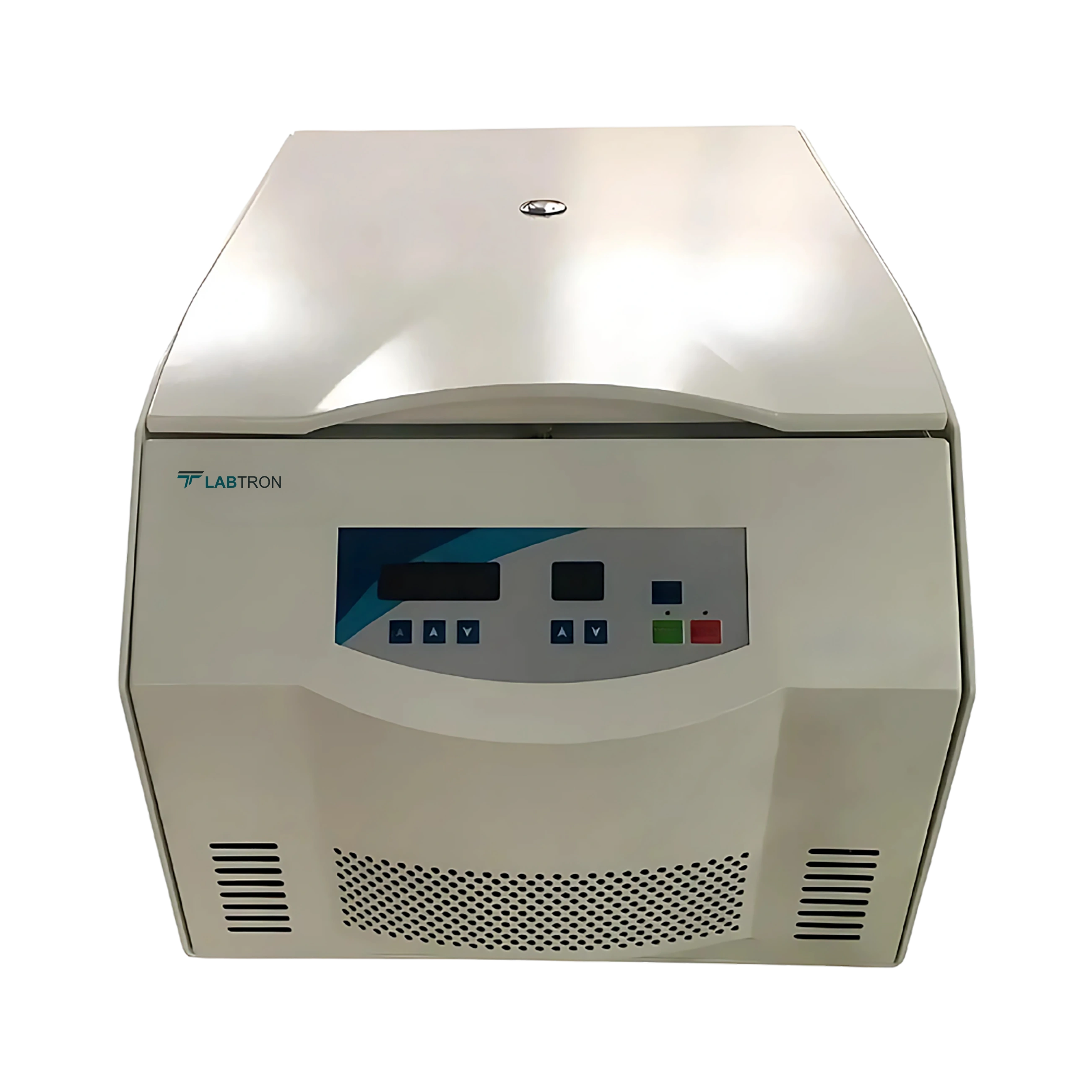

This table-top low speed centrifuge is equipped with low noise flexible axle driven rotor system which ensure smooth functioning. It has electric lid lock system, which provides protection against high speed and imbalance. It has compact design and is made using superior quality corrosion resistant stainless steel. They are of use in hospitals, blood centers, and research institutes for qualitative analysis.
Request Quote| Max. speed | 6000rpm |
| Max. RCF | 4730×g |
| Max. Capacity | 4×250ml |
| Timer range | 0~99min |
| Speed accuracy | ±10rpm |
| Noise | ≤45dBA |
| Weight | 23kg |
| Power supply | 220 V/110 V, 50 Hz/60 Hz |
| Dimension HxWxD | 570 x 400 x 320 mm |
Low speed centrifuge is widely used for qualitative analysis in hospitals, blood banks, research institutes.
| Rotor Name | Max. Speed (rpm) | Max. Capacity (ml) | Max. RCF (x g) |
| Angle Rotor 01 | 6000 | 6 x 15 | 3660 |
| Angle Rotor 02 | 6000 | 12 x 15 | 4430 |
| Angle Rotor 03 | 6000 | 6 x 50 | 4110 |
| Angle Rotor 04 | 5000 | 4 x 50 | 3620 |
| Angle Rotor 05 | 6000 | 4 x 100 | 3790 |
| Angle Rotor 06 | 5000 | 24 x 15 | 3500 |
| Angle Rotor 07 | 5000 | 12 x 50 | 3860 |
| Angle Rotor 08 | 5000 | 6 x 100 | 3130 |
| Angle Rotor 09 | 4000 | 12 x 100 | 2970 |
Available Range :
Max. Speed : 4000rpm Max. speed : 1500 rpm Max. speed : 6000 rpm Max. speed : 4000rpm Max. speed : 4000rpm Max. speed : 5000rpmRelated Models :
Cyto-Low Speed Centrifuge LLS-A10
Low speed centrifuge LLS-A11
Low speed centrifuge LLS-A12
Crude oil test low speed centrifuge LLS-A20
Low speed centrifuge LLS-A30
Low speed centrifuge LLS-A31
Low speed centrifuge LLS-A32
Low speed centrifuge LLS-A40
Low speed centrifuge LLS-A41
Low speed centrifuge LLS-A42
Low speed centrifuge LLS-A50
Low speed centrifuge LLS-A53
Low Speed Centrifuge LLS-A13
Low Speed Centrifuge LLS-A54
Low Speed Centrifuge LLS-A56
Low speed Centrifuge LLS-A55
Low-Speed Centrifuge LLS-A57
Cyto-Low Speed Centrifuge LLS-A14
Cyto-Low Speed Centrifuge LLS-A16
Cyto-Low Speed Centrifuge LLS-A15
| Model | Max. speed | Max. RCF | Max. Capacity | Timer range | RPM/RCF convert | Temp. Range | Temp. Accuracy | Speed accuracy | Chamber diameter | Noise | Temperature | Acceleration/ Deceleration | Dimension(HxWxD) 12 cards | Net weight for 12 cards | Dimension(HxWxD) 24 cards | Net weight for 24 cards | Weight | Power | Power supply | Dimension (LxWxH) | Dimension HxWxD | Outer dimension | Packaging dimension | Dimension W×D×H | Net weight | Gross weight |
| LLS-A10 | - | 2500×g | 6×30ml | - | - | - | - | - | - | ≤ 60dBA | - | - | - | - | - | - | 14 kg | - | - | - | - | - | - | - | - | - |
| LLS-A11 | 1500 rpm | 760 × g | 12 Gerber Tubes | 0 to 99 min | Yes | - | - | ± 20 rpm | - | ≤ 55 dB | Normal | 10 Kinds | - | - | - | - | - | - | AC 220V/ 110 V, 50 Hz/ 60 Hz | - | - | - | - | 620 × 450 × 355 mm | 52 kg | - |
| LLS-A12 | 6000 rpm | 4730 × g | 4 × 250 ml | 0 to 99 min | Yes | - | - | ± 10 rpm | - | ≤ 45 dB | Normal | 10 Kinds | - | - | - | - | - | - | AC 220V/ 110 V, 50 Hz/ 60 Hz | - | - | - | - | 570 × 400 × 320 mm | 52 kg | - |
| LLS-A20 | 4000rpm | 2498×g | 4x100ml | 0~99min | - | (+)10~80℃ | - | ±20rpm | - | ≤50dBA | - | - | - | - | - | - | 67kg | - | - | - | 685 x 500 x405 mm | - | - | - | - | - |
| LLS-A30 | 4000rpm | 2390x g | 6×50ml | 0~99min | - | - | - | ±10rpm | - | ≤45dBA | - | - | - | - | - | - | 18kg | - | AC220V/110V/50Hz, 2A | - | 485x320x255 mm | - | - | - | - | - |
| LLS-A31 | 5000rpm | 4420×g | 4×250ml | 0~99min | - | - | - | ±10rpm | - | ≤58dBA | - | - | - | - | - | - | 35kg | - | AC220V/110, 50 Hz/ 60 Hz | - | 320x568x400 mm | - | - | - | - | - |
| LLS-A32 | 4000rpm | 2250×g(24 cards), 830×g(12 cards) | 24 cards/12 cards | 0~99min | - | - | - | ±20rpm | - | ≤45dBA | - | - | 230×460×320mm | 17kg | 483×320×265mm | 23kg | - | - | AC220V/110V, 50Hz/60Hz | - | - | - | - | - | - | - |
| LLS-A40 | 5000rpm | 3860×g | 4×500ml | 0~99min | - | - | - | ± 50 rpm | - | ≤58dBA | - | - | - | - | - | - | 67kg | - | AC110/220V, 50-60Hz,10A | - | 685 x 500 x 405 mm | - | - | - | - | - |
| LLS-A41 | 5000rpm | 3860×g | 4×500ml | 0~99min | - | - | - | ±50 rpm | - | ≤58dBA | - | - | - | - | - | - | 108kg | - | AC110/220V, 50-60Hz,10A | - | 655×500×790mm | - | - | - | - | - |
| LLS-A42 | 5000rpm | 4420×g | 4×250ml | 0~99min | - | - | - | ± 20 rpm | - | ≤58dBA | - | - | - | - | - | - | 40kg | - | 220 V/110 V, 50 Hz/60 Hz | - | 320×568×400mm | - | - | - | - | - |
| LLS-A50 | 6000rpm | 6600xg | 4x100ml | 0~99h 59min | - | - | ±1ºC | ±50 rpm | - | ≤55dBA | - | - | - | - | - | - | 95kg | - | AC110/220V, 50-60Hz,20A | - | 792 x 640 x 865 mm | - | - | - | - | - |
| LLS-A51 | 6000rpm | 4730×g | 4×250ml | 0~99min | - | - | - | ±10rpm | - | ≤45dBA | - | - | - | - | - | - | 23kg | - | 220 V/110 V, 50 Hz/60 Hz | - | 570 x 400 x 320 mm | - | - | - | - | - |
| LLS-A53 | 5500 rpm | 5310 × g | 4 × 750 ml | 1 to 99 min | - | - | - | ± 20 rpm | 420 mm | ≤ 60 dB | - | - | - | - | - | - | - | 750 W | AC 220 V, 50 Hz, 10 A | - | - | 560 × 460 × 400 mm | 640 × 530 × 470 mm | - | 50 kg | 55 kg |
| LLS-A13 | - | - | - | 1 to 99 min | - | - | - | ±20 rpm | - | ≤60 dBA | 10 to 80°C | - | - | - | - | - | 67 kg | - | AC 220 V 50/60 Hz | - | - | - | - | - | - | - |
| LLS-A54 | - | - | - | - | - | - | - | - | - | ≤ 58 dB | Normal | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| LLS-A56 | - | - | - | - | - | - | - | - | - | ≤ 55 dB | Normal | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| LLS-A55 | - | - | - | - | - | - | - | - | - | ≤ 58 dB | Normal | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| LLS-A57 | - | - | - | - | - | - | - | - | - | ≤ 55 dB | - | - | - | - | - | - | 18 Kg | - | - | - | - | - | - | - | - | - |
| LLS-A14 | - | 1980 ×g | 6 × 0.5ml, 6 × 1.5ml, 6 × 2ml | - | - | - | - | - | - | ≤ 53dB (A) | - | - | - | - | - | - | 35 Kg | 450W | - | - | - | - | - | - | - | - |
| LLS-A16 | - | - | - | - | - | - | - | - | - | ≤ 55 dB | - | - | - | - | - | - | 28 Kg | - | - | - | - | - | - | - | - | - |
| LLS-A15 | - | 2170×g | 10pcs slide glass | - | - | - | - | - | - | ≤ 60 dB | - | - | - | - | - | - | 23 kg | - | - | - | - | - | - | - | - | - |
