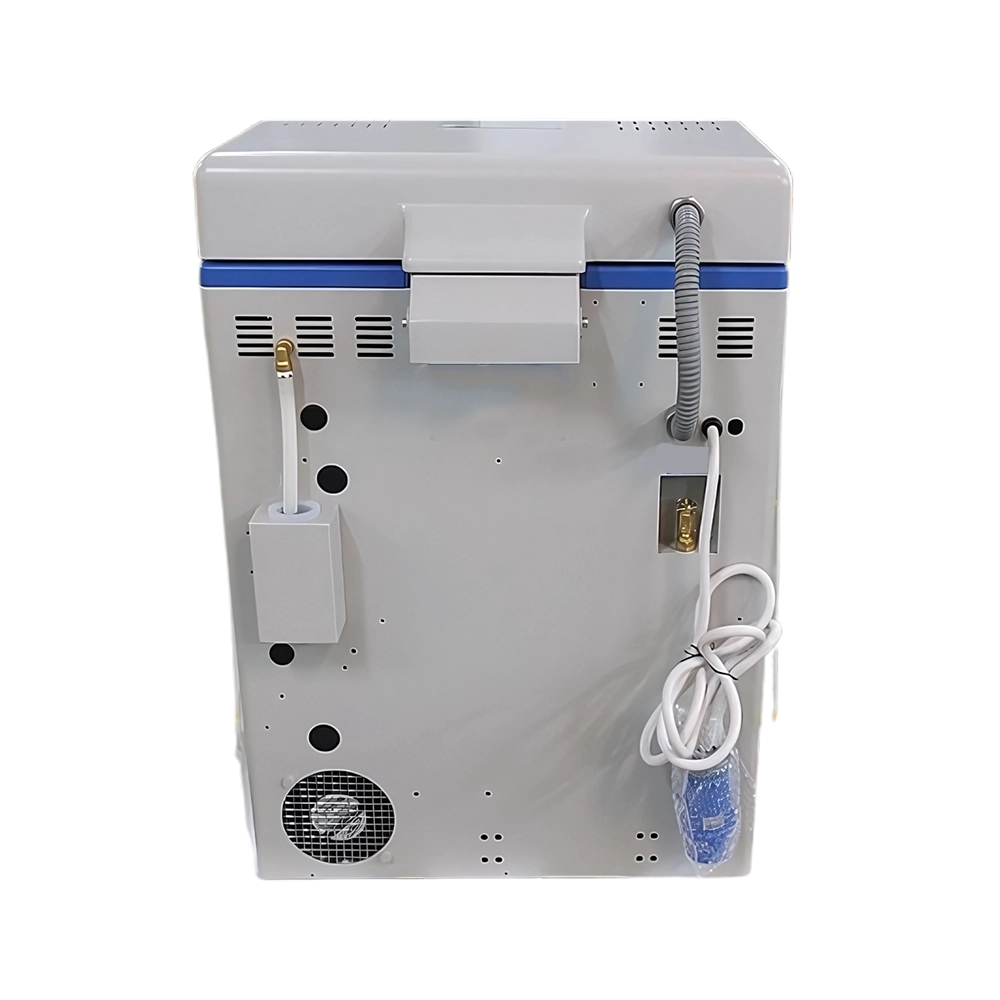

Vertical Autoclave LVA-L10

Vertical Autoclave LVA-L10

Vertical Autoclave LVA-L10 is a 60 liter capacity fast speed microcomputer controlled unit with eight column evenly distributed mechanical interlocking system and cooling lock open temperature for sterilization. Inbuilt with automatic water feeding, cooling fan and drying mode for different types of sterilization cycles such as agar and solid with drying cycle. It consists of embedded steam collector and water tank with exhaust mode. Automatic protection with water level sensor, overpressure, cooling lock, dry scorch, temperature, safety valve, short circuit and anti-scald chamber leakage.

Request Quote
Capacity 60 L
Number of baskets 2
Sterilization temperature 105 °C to 138 °C
Working environment temperature 5 °C to 45 °C
Temperature accuracy 0.1 °C
Sterilization time range 1 to 6000 minutes
Melting temperature 45 °C to 60 °C
Melting time range 1 to 9999 minutes
Drying temperature 80 °C to 140 °C
Drying time range 1 to 300 minutes
Pressure gauge display -0.1 MPa to 0.5 MPa
Maximum working pressure 0.27 MPa
Design pressure 0.35 MPa
Chamber material SUS 304
Steam collector Embedded steam collector
Water tank 28 L tank
Sterilization cycle Solid, liquid, liquid with warming, agar, solid with drying, medical waste and customized cycles
Sterilization cycle number Up to 60 cycles
Power supply 2900 W
Current supply 16 A
Voltage supply AC 220 V, 50/60 Hz
Chamber dimension (D × H) ɸ 400 mm × 505 mm
Stainless steel basket dimension (D × H) (ɸ 360 mm × 200 mm) × 2
Dimensions (L × W × H) 660 × 644 × 980 mm
Packing Dimensions (L × W × H) 980 × 800 × 1230 mm
Gross Weight 157 kg
  • Fast speed microcomputer intelligent control system
  • Eight column evenly distributed mechanical interlocking system
  • Drying mode consists of Automatic water feeding + cooling fan + drying
  • Specially designed for solid with drying function sterilization cycle
  • Sterilization cycle: Solid, liquid, liquid with warming, agar, solid with drying, medical waste and customized cycles
  • Sterilization cycle number: up to 60 cycles
  • Made up of SUS 304 chamber material
  • Up and Down lid opening type
  • Consist of auto start and preset range of timer
  • Water level sensor, leakage cooling lock, over pressure protection
  • Temperature monitor, anti-scald chamber and short circuit protection
  • Automatic internal discharging exhaust mode with steam collector bottle
  • Cooling lock open temperature feature
  • Easy to understand and operable control panel

Widely used in the applications of Biochemistry, pharmaceutical industry, medicine and health care industry, Biotechnology, Microbiology and scientific research.

No Accessory name
1 Drainage Hose
2 Water Plate
3 Exhaust Bottle

Available Range :

Capacity : 35 L Capacity : 50 L Capacity : 75 L Capacity : 100 L Capacity : 120 L Capacity : 150 L

Related Models :

Compare Models

Model Capacity Number of baskets Sterilization temperature Working environment temperature Temperature accuracy Sterilization time range Melting temperature Melting time range Drying temperature Drying time range Pressure gauge display Maximum working pressure Design pressure Chamber material Steam collector Water tank Sterilization cycle Sterilization cycle number Power supply Current supply Voltage supply Chamber dimension (D × H) Stainless steel basket dimension (D × H) Dimensions (L × W × H) Packing Dimensions (L × W × H) Gross Weight
LVA-C10 35 L - - - - - - - - - - - - - - - - - - - - - - - - -
LVA-C11 50 L - - - - - - - - - - - - - - - - - - - - - - - - -
LVA-C12 75 L - - - - - - - - - - - - - - - - - - - - - - - - -
LVA-C13 100 L - - - - - - - - - - - - - - - - - - - - - - - - -
LVA-C14 120 L - - - - - - - - - - - - - - - - - - - - - - - - -
LVA-C15 150 L - - - - - - - - - - - - - - - - - - - - - - - - -
LVA-G10 35L - - - - - - - - - - - - - - - - - - - - - - - - -
LVA-G11 50L - - - - - - - - - - - - - - - - - - - - - - - - -
LVA-G12 75L - - - - - - - - - - - - - - - - - - - - - - - - -
LVA-G13 100L - - - - - - - - - - - - - - - - - - - - - - - - -
LVA-I10 35 L - - - - - - - - - - - - - - - - - - - - - - - - -
LVA-I11 50 L - - - - - - - - - - - - - - - - - - - - - - - - -
LVA-I12 75 L - - - - - - - - - - - - - - - - - - - - - - - - -
LVA-I13 100 L - - - - - - - - - - - - - - - - - - - - - - - - -
LVA-I14 120 L - - - - - - - - - - - - - - - - - - - - - - - - -
LVA-I15 150 L - - - - - - - - - - - - - - - - - - - - - - - - -
LVA-J10 35 L - - - - - - - - - - - - - - - - - - - - - - - - -
LVA-J11 50 L - - - - - - - - - - - - - - - - - - - - - - - - -
LVA-J12 75 L - - - - - - - - - - - - - - - - - - - - - - - - -
LVA-K10 60 L - - - - - - - - - - - - - - - - - - - - - - - - -
LVA-K11 80 L - - - - - - - - - - - - - - - - - - - - - - - - -
LVA-K12 100 L - - - - - - - - - - - - - - - - - - - - - - - - -
LVA-K13 120 L - - - - - - - - - - - - - - - - - - - - - - - - -
LVA-A10 35 L - - - - - - - - - - - - - - - - - AC 220 V, 50 Hz - - - - - - -
LVA-A11 50 L - - - - - - - - - - - - - - - - - AC 220 V, 50 Hz - - - - - - -
LVA-A12 75 L - - - - - - - - - - - - - - - - - AC 220 V, 50 Hz - - - - - - -
LVA-A13 100 L - - - - - - - - - - - - - - - - - AC 220 V, 50 Hz - - - - - - -
LVA-A14 120 L - - - - - - - - - - - - - - - - - AC 220 V, 50 Hz - - - - - - -
LVA-A15 150 L - - - - - - - - - - - - - - - - - AC 220 V, 50 Hz - - - - - - -
LVA-B10 35 L - - - - - - - - - - - - - - - - - - - - - - - - -
LVA-B11 50 L - - - - - - - - - - - - - - - - - - - - - - - - -
LVA-B12 75 L - - - - - - - - - - - - - - - - - - - - - - - - -
LVA-B13 100 L - - - - - - - - - - - - - - - - - - - - - - - - -
LVA-B14 120 L - - - - - - - - - - - - - - - - - - - - - - - - -
LVA-B15 150 L - - - - - - - - - - - - - - - - - - - - - - - - -
LVA-D10 35 L - - - - - - - - - - - - - - - - - AC 220 V, 50 Hz - - - - - - -
LVA-D11 50 L - - - - - - - - - - - - - - - - - AC 220 V, 50 Hz - - - - - - -
LVA-D12 75 L - - - - - - - - - - - - - - - - - AC 220 V, 50 Hz - - - - - - -
LVA-D13 100 L - - - - - - - - - - - - - - - - - AC 220 V, 50 Hz - - - - - - -
LVA-L10 60 L 2 105 °C to 138 °C 5 °C to 45 °C 0.1 °C 1 to 6000 minutes 45 °C to 60 °C 1 to 9999 minutes 80 °C to 140 °C 1 to 300 minutes -0.1 MPa to 0.5 MPa 0.27 MPa 0.35 MPa SUS 304 Embedded steam collector 28 L tank Solid, liquid, liquid with warming, agar, solid with drying, medical waste and customized cycles Up to 60 cycles 2900 W 16 A AC 220 V, 50/60 Hz ɸ 400 mm × 505 mm (ɸ 360 mm × 200 mm) × 2 660 × 644 × 980 mm 980 × 800 × 1230 mm 157 kg
LVA-L11 85 L 2 105 °C to 138 °C 5 °C to 45 °C 0.1 °C 1 to 6000 minutes 45 °C to 60 °C 1 to 9999 minutes 80 °C to 140 °C 1 to 300 minutes -0.1 MPa to 0.5 MPa 0.27 MPa 0.35 MPa SUS 304 Embedded steam collector 28 L tank Solid, liquid, liquid with warming, agar, solid with drying, medical waste and customized cycles Up to 60 cycles 4600 W 32 A AC 220 V, 50/60 Hz ɸ 400 mm × 700 mm (ɸ 360 mm × 280 mm) × 2 660 × 644 × 980 mm 980 × 800 × 1230 mm 162 kg
LVA-L12 110 L 3 105 °C to 138 °C 5 °C to 45 °C 0.1 °C 1 to 6000 minutes 45 °C to 60 °C 1 to 9999 minutes 80 °C to 140 °C 1 to 300 minutes -0.1 MPa to 0.5 MPa 0.27 MPa 0.35 MPa SUS 304 Embedded steam collector 28 L tank Solid, liquid, liquid with warming, agar, solid with drying, medical waste and customized cycles Up to 60 cycles 4600 W 32 A AC 220 V, 50/60 Hz ɸ 400 mm × 895 mm (ɸ 360 mm × 250 mm) × 3 660 × 644 × 1180 mm 980 × 800 × 1430 mm 182 kg
LVA-L20 36 L - 105 to 135˚C - 0.1˚C 1 to 6000 minutes 60 to 100˚C - - - - - - SUS 304 - - - - 220 V, 16 A, 50/60 Hz - - - - - - -
LVA-L21 54 L - 105 to 135˚C - 0.1˚C 1 to 6000 minutes 60 to 100˚C - - - - - - SUS 304 - - - - 220 V, 32 A, 50/60 Hz - - - - - - -
LVA-H10 35 L - - - - - - - - - - - - - - - - - - - - - - - - 72 kg
LVA-H11 50 L - - - - - - - - - - - - - - - - - - - - - - - - 88 kg
LVA-H12 75 L - - - - - - - - - - - - - - - - - - - - - - - - 100 kg
LVA-H13 100 L - - - - - - - - - - - - - - - - - - - - - - - - 110 kg
LVA-F10 50 L - - - - - - - - - - - - - - - - - - - - - - - - 120 kg
LVA-F11 75 L - - - - - - - - - - - - - - - - - - - - - - - - 140 kg
LVA-F13 100 L - - - - - - - - - - - - - - - - - - - - - - - - 160 kg
LVA-F20 50 L - - - - - - - - - - - - - - - - - - - - - - - - 102 kg
LVA-F21 75 L - - - - - - - - - - - - - - - - - - - - - - - - 120 kg
LVA-F22 100 L - - - - - - - - - - - - - - - - - - - - - - - - 135 kg
LVA-F23 35 L - - - - - - - - - - - - - - - - - - - - - - - - 96 kg
