Lab Refrigerator-freezer Combination LRFC-A15 is a floor standing unit with freezer capacity 204 L and refrigerator capacity 315 L. It has microcomputer temperature control system, audible and visual alarm system (built-in alarm sensor), human-centred design and highly efficient separate compressor and separate controller of freezer and refrigerator for easy operations. Its configuration meets the requirement for storage of several materials like reagents, plasma, vaccines, biological products etc.
Request Quote| Capacity |
519 L ( Freezer 204 L, Refrigerator 315 L) |
| Temperature Range |
Refrigerator:2 to 8°C Freezer :-10 to -40°C |
| Ambient Temperature | 16 to 32°C |
| Cooling Performance |
Refrigerator:2 °C Freezer : -40°C |
| Cooling Type |
Forced Air Cooling Direct Air Cooling |
| Shelves | 4 storage rack 1 shelve |
| Drawer | 3 ( 2 sections on each drawer) |
| Interior Lighting | LED |
| Compressor | 2 |
| Insulation Thickness | 100 mm |
| Access Test Port | 2 |
| Rollers For Portability | 4 wheels |
| Inner Material | Stainless steel |
| External Material | Steel with powder coating |
| Rated Power | 382 W |
| Input Power | 560 W |
| Current Consumption | 3.76 (kWh/24h) |
| Rated Current | 2.54 A |
| Power Supply | 110V/220V, 60Hz /50Hz |
| Internal Dimension (W×D×H) |
Refrigerator: 750 × 610 × 740 mm Freezer:650 × 560 × 565 mm |
| External Dimension | 910 × 740 × 1972 mm |
| Packaging Dimension | 990 × 855 × 2062 mm |
| Net Weight | 186 Kg |
| Gross Weight | 205 Kg |
It is highly suitable to store various materials like blood plasma, reagents, vaccine, biological products, temperature sensitive items etc. It is used in hospitals, clinics, blood banks, laboratories, food industry and at many more places.
Available Range :
Total capacity : 620 L (470 L refrigerator + 150 L freezer) Total capacity : 310 L (230 L refrigerator + 80 L freezer) Total capacity : 490 L (350 L refrigerator + 140 L freezer) Total capacity : 265 L (160 L refrigerator + 105 L freezer) Effective capacity : 450 Liters Capacity : 519 L| Model | Capacity | Temperature Range | Ambient Temperature | Cooling Performance | Cooling Type | Shelves | Drawer | Interior Lighting | Compressor | Insulation Thickness | Access Test Port | Rollers For Portability | Inner Material | External Material | Rated Power | Input Power | Current Consumption | Rated Current | Power Supply | Internal Dimension (W×D×H) | External Dimension | Packaging Dimension | Net Weight | Gross Weight |
| LRFC-A12 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| LRFC-A13 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

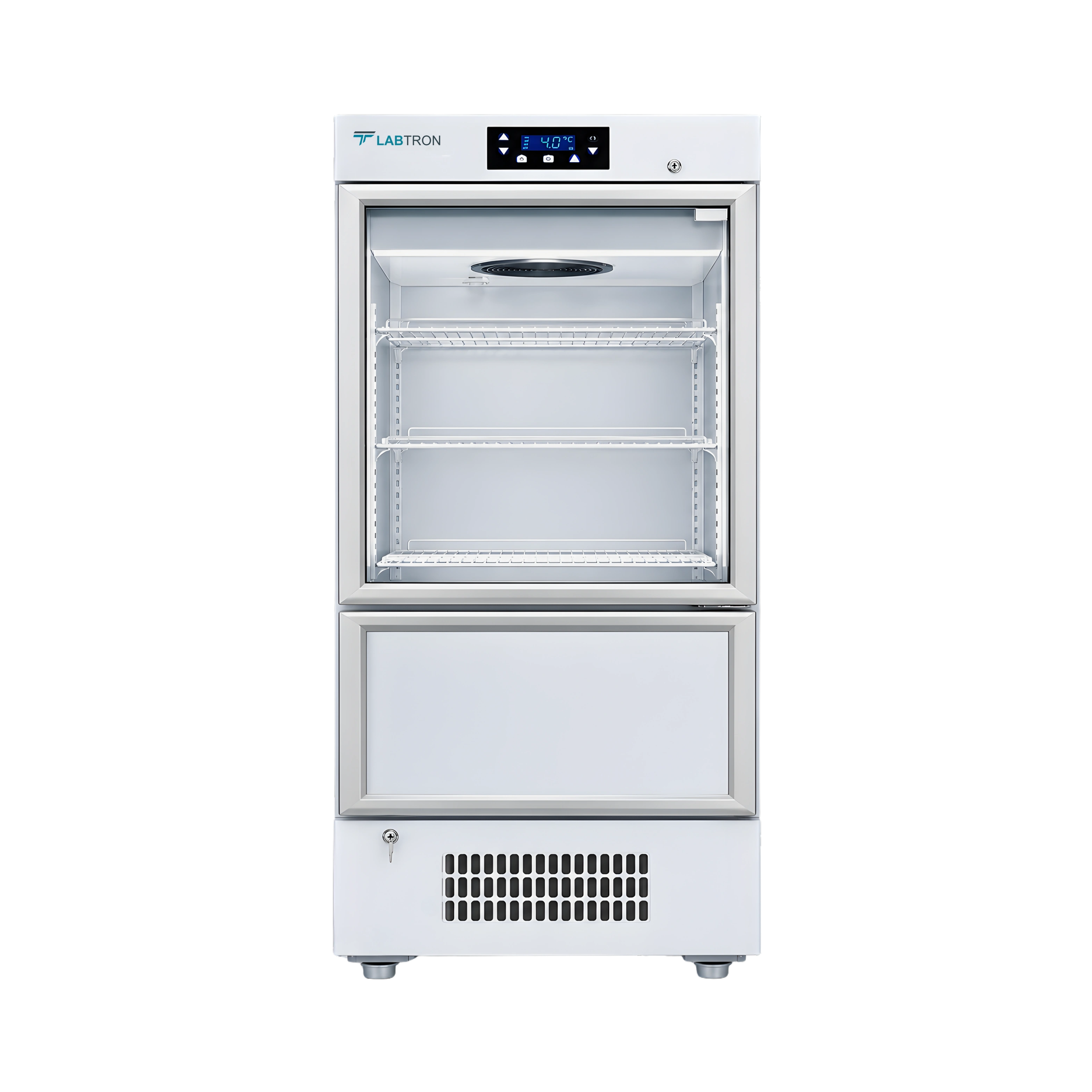

| LRFC-A14 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| LRFC-A10 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

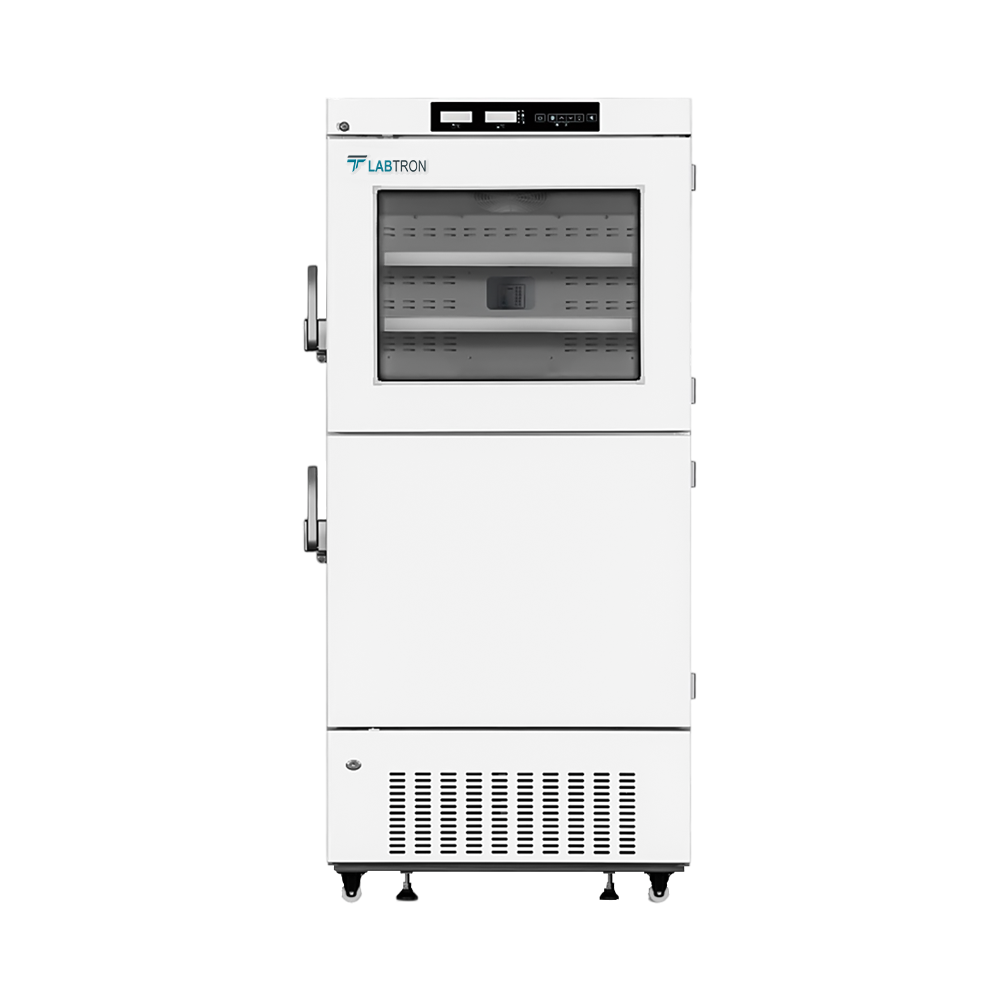

| LRFC-A11 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 125 kg | 140 kg |
| LRFC-A15 |
519 L ( Freezer 204 L, Refrigerator 315 L) |
Refrigerator:2 to 8°C Freezer :-10 to -40°C |
16 to 32°C |
Refrigerator:2 °C Freezer : -40°C |
Forced Air Cooling Direct Air Cooling |
4 storage rack 1 shelve | 3 ( 2 sections on each drawer) | LED | 2 | 100 mm | 2 | 4 wheels | Stainless steel | Steel with powder coating | 382 W | 560 W | 3.76 (kWh/24h) | 2.54 A | 110V/220V, 60Hz /50Hz |
Refrigerator: 750 × 610 × 740 mm Freezer:650 × 560 × 565 mm |
910 × 740 × 1972 mm | 990 × 855 × 2062 mm | 186 Kg | 205 Kg |
| LRFC-A16 |
288 L (Refrigerator- 188 L, Freezer- 100 L) |
Refrigerator: 2°C To 8°C Freezer: -20°C to -40°C |
- |
Refrigerator:2°C Freezer : -40°C |
Refrigerator: Forced air cooling Freezer: Direct cooling |
3 |
Refrigerator: 1 unit, SUS304 stainless steel Freezer: 2 |
LED | - | 50 mm | - | - | Stainless steel | Steel with powder coating | - | - | - | - | 220 V to 240 V/50 Hz to 60 Hz |
Refrigerator: 588 × 552 × 630 mm Freezer: 511 × 491 × 415 mm |
- | - | 146 kg | 175 kg |
