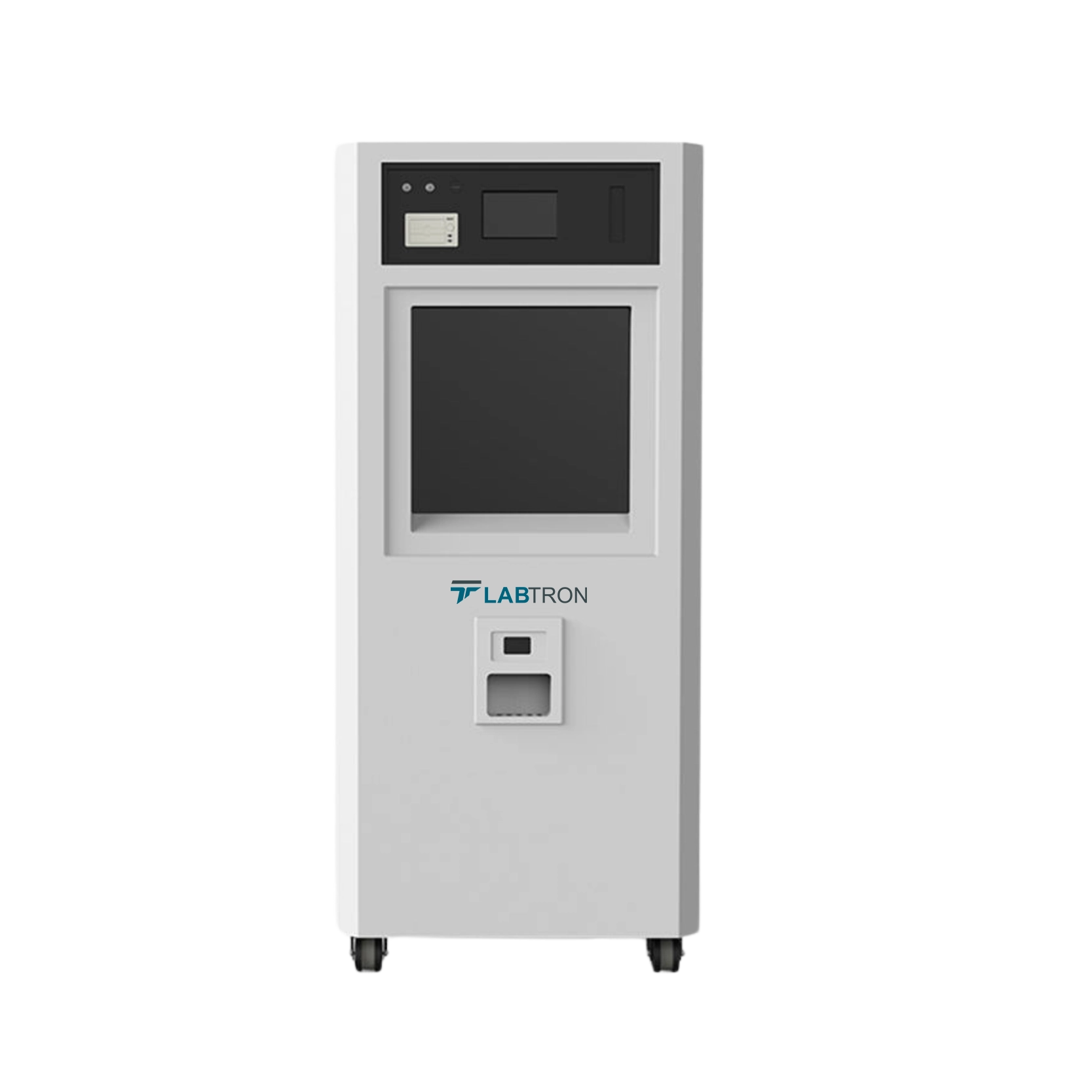

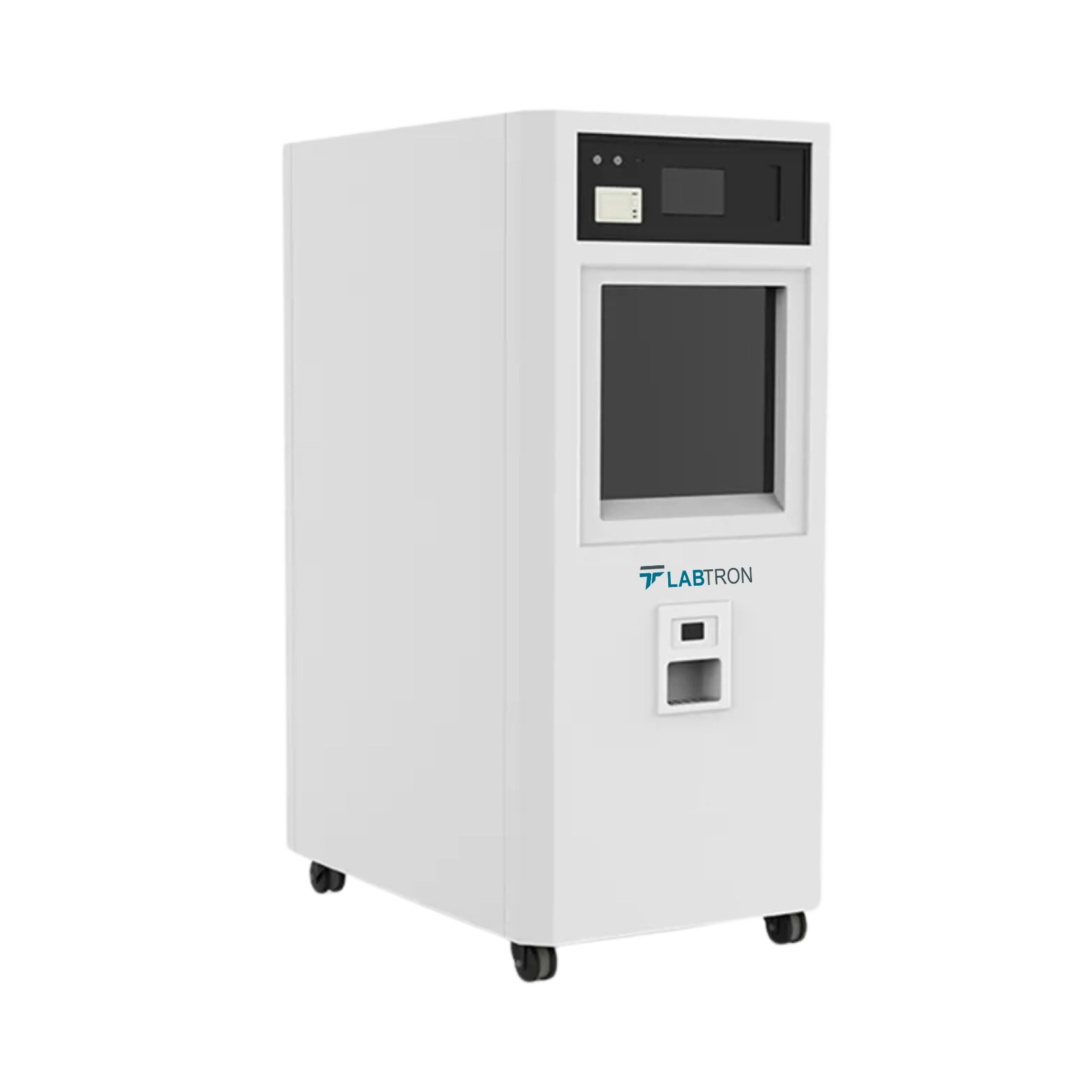

Plasma Autoclave LPA-B30 is a H2O2 plasma sterilizer with microprocessor PLC controlled system, fully automated process with 60 L volume capacity. This Class II medical equipment offers manual door opening vertical type, rectangular chamber design. Chamber is made up of anti-corrosion type 5052 aluminum alloy with thickness ≥ 8mm, and is adopted with excellent thermal conductivity, to ensure 100% maintenance of gaseous hydrogen peroxide. Equipped with high and low temperature alarm system, pressure and temperature sensors, H2O2 resistant rotary vane vacuum pump for quality performance.
Request QuoteChamber Volume | 60 L |
Sterilization temperature | 50 ± 5°C |
Working pressure | -50 Pa |
Sterilizing agent | 60 % (H2O2) hydrogen peroxide |
Sterilizing time | 45 to 50 min |
Installation environment temperature | 5 to 45°C |
Vacuum speed | Absorb to – 50 Pa in five minutes |
High anti-pressure valve | 10 Pa |
Door type | Manual door opening, vertical |
Operation height (for chamber design) | ≤ 160 cm |
Chamber material | Anti-corrosion type 5052 aluminum alloy, thickness ≥ 8mm |
Chamber temperature heating power | 3.8 kW, preheating heating time ≤ 30min |
Electrode material | Aluminum alloy material 5052, sheet metal forming, thickness ≥ 2mm |
Sealing door material | Aluminum alloy material 5052, thickness ≥ 15mm |
Carton material | Carbon steel baking plastic powder and ABS |
Main insulation | ≥ 20mm rubber sponge, with a low thermal conductivity |
Storage U disk capacity | ≥ 8 G |
Air filter accuracy | ≤ 0.2 µm |
Chamber dimension (L×W×H) | 610 × 350 × 320 mm |
Packaging dimension (L×W×H) | 920 × 670 × 1450 mm |
Power | 2.6 kW |
Power supply | AC220 V, 50 Hz |
Gross weight | 270 kg |
Used in the hospital, pharmaceutical factory, lab, medical institutions for low temperature sterilization of heat sensitive materials.
Available Range :
Capacity : 80 L Capacity : 120 L Capacity : 240 L Chamber Volume : 100 L Chamber Volume : 130 L Chamber Volume : 220 LRelated Models :
Model | Chamber Volume | Sterilization temperature | Working pressure | Sterilizing agent | Sterilizing time | Installation environment temperature | Vacuum speed | High anti-pressure valve | Door type | Operation height (for chamber design) | Chamber material | Chamber temperature heating power | Electrode material | Sealing door material | Carton material | Main insulation | Storage U disk capacity | Air filter accuracy | Chamber dimension (L×W×H) | Packaging dimension (L×W×H) | Power | Power supply | Gross weight |
LPA-A10 | - | - | - | 60 % H2O2 | - | - | - | - | Rectangular, single door | - | Anti rust aluminum alloy | - | - | - | - | - | - | - | - | - | - | 3 kW / 220 V, Single phase | 210 kg |
LPA-A11 | - | - | - | 60 % H2O2 | - | - | - | - | Rectangular, single door | - | Anti rust aluminum alloy | - | - | - | - | - | - | - | - | - | - | 3 kW / 220 V, Single phase | 270 kg |
LPA-A12 | - | - | - | 60 % H2O2 | - | - | - | - | Rectangular, double door | - | Anti rust aluminum alloy | - | - | - | - | - | - | - | - | - | - | 3 kW / 220 V, Single phase | 440 kg |
LPA-B10 | 100 L | 50 ± 5°C | -50 Pa | 60 % (H2O2) hydrogen peroxide | 45 to 50 min | 5 to 45°C | Absorb to – 50 Pa in five minutes | 10 Pa | Rectangular type, sliding door | - | Anti-corrosion type SUS 304 stainless steel | 2.75 kW, pre-heating time 30 mins | Anti-corrosion type SUS 304 stainless steel | Anti-corrosion type SUS 304 stainless steel | Carbon steel baking plastic powder and ABS | - | ≥ 8 G | ≤ 0.2 µm | - | - | 3.95 kW | heating method AC220 V, 50 Hz | 340 kg |
LPA-B11 | 130 L | 50 ± 5°C | -50 Pa | 60 % (H2O2) hydrogen peroxide | 45 to 50 min | 5 to 45°C | Absorb to – 50 Pa in five minutes | 10 Pa | Rectangular type, sliding door | - | Anti-corrosion type SUS 304 stainless steel | 2.75 kW, pre-heating time 30 mins | Anti-corrosion type SUS 304 stainless steel | Anti-corrosion type SUS 304 stainless steel | Carbon steel baking plastic powder and ABS | - | ≥ 8 G | ≤ 0.2 µm | - | - | 4.35 kW | heating method AC220 V, 50 Hz | 360 kg |
LPA-B12 | 220 L | 50 ± 5°C | -50 Pa | 60 % (H2O2) hydrogen peroxide | 45 to 50 min | 5 to 45°C | Absorb to – 50 Pa in five minutes | 10 Pa | Rectangular type, sliding door | - | Anti-corrosion type SUS 304 stainless steel | 2.75 kW, pre-heating time 30 mins | Anti-corrosion type SUS 304 stainless steel | Anti-corrosion type SUS 304 stainless steel | Carbon steel baking plastic powder and ABS | - | ≥ 8 G | ≤ 0.2 µm | - | - | 5.15 kW | heating method AC220 V, 50 Hz | 450 kg |
LPA-B30 | 60 L | 50 ± 5°C | -50 Pa | 60 % (H2O2) hydrogen peroxide | 45 to 50 min | 5 to 45°C | Absorb to – 50 Pa in five minutes | 10 Pa | Manual door opening, vertical | ≤ 160 cm | Anti-corrosion type 5052 aluminum alloy, thickness ≥ 8mm | 3.8 kW, preheating heating time ≤ 30min | Aluminum alloy material 5052, sheet metal forming, thickness ≥ 2mm | Aluminum alloy material 5052, thickness ≥ 15mm | Carbon steel baking plastic powder and ABS | ≥ 20mm rubber sponge, with a low thermal conductivity | ≥ 8 G | ≤ 0.2 µm | 610 × 350 × 320 mm | 920 × 670 × 1450 mm | 2.6 kW | AC220 V, 50 Hz | 270 kg |
LPA-C10 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 380v 3.8KVA | - | - |
LPA-C11 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 4.2KVA | - | - |
